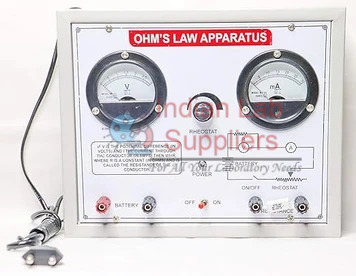

Ohms Law Apparatus (with Power Supply) Manufacturer,Supplier and Exporter in India
 (1).jpg)
Product Code : SCL-EELE-14530
The Ohm’s Law Apparatus (with Power Supply) is a complete experimental setup designed to help students understand the fundamental relationship between Voltage (V), Current (I), and Resistance (R). This apparatus includes a built-in regulated DC power supply, variable resistor, and accurately marked terminals to ensure smooth and error-free experimentation.
It is ideal for demonstrating Ohm’s Law, verifying linear V-I characteristics, and understanding the behavior of basic electrical components. Commonly used in physics labs, engineering colleges, polytechnic institutes, TVET labs, and senior secondary schools.
Key Features
- Built-in Regulated Power Supply: Eliminates the need for external units and ensures consistent output for accurate results.
- Easy-to-Use Layout: Pre-assembled circuit with clearly marked terminals to avoid student wiring errors.
- Variable Resistance Control: Allows smooth variation of resistance to study changes in current and voltage.
- Accurate Meters: Includes analog or digital voltmeters and ammeters for precise readings.
- Safe & Rugged Design: Shock-proof body with insulated connectors for safe classroom handling.
- Ideal for V-I Graph Experiments: Perfect for plotting Voltage vs Current curves and verifying Ohm’s Law.
- High Durability: Made with quality electrical components for long operational life.
Technical Specifications
|
Parameter |
Details |
|
Model Type |
Ohm’s Law Apparatus (with inbuilt DC Power Supply) |
|
Power Supply Output |
0–12V DC regulated |
|
Meters |
Voltmeter (0–12V), Ammeter (0–500mA or as required) |
|
Resistance Element |
Variable resistor / Rheostat |
|
Connections |
Banana terminals or fixed test points |
|
Body Material |
Insulated, high-strength plastic/metal base |
|
Protection |
Overload / short-circuit protection |
|
Input Power |
AC 230V / 110V mains (as required) |
Why Choose an Indian Lab Supplier?
Indian-made apparatus offer accurate measurements, durable designs, and budget-friendly pricing suitable for bulk educational orders.
Products are built to match NCERT, CBSE, ISC, AICTE, and polytechnic syllabus requirements.
Easy access to spare parts, quick delivery, and prompt after-sales service due to local manufacturing.
Built using robust components to withstand daily student use.
Indian suppliers can tailor measurement ranges, display types (analog/digital), and resistance configurations as per lab requirements.
