Digital Ohm's Law Apparatus Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-EELE-14529

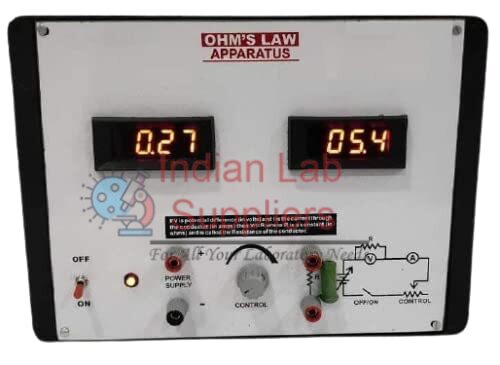

Indian Lab Suppliers supplies the Digital Ohm's Law Apparatus (Product ID: 14529) as part of its electronics engineering lab equipment range. It is a pre-wired Ohm's law set-up with a regulated DC supply, a variable resistor and a digital voltmeter and ammeter.
Quick Answer
A built-in regulated supply gives 0–12 V DC from AC mains (230 V or 110 V as required), and a variable resistor or rheostat changes the circuit resistance. Digital meters show voltage and current, typically up to 500 mA, so students can tabulate V against I and confirm that V/I stays constant for a fixed resistor (V = IR). The circuit is pre-assembled, with banana terminals or fixed test points, overload and short-circuit protection and an insulated housing. Please confirm the current range and mains voltage at quotation.
Key Specifications
| Parameter | Detail |
|---|---|
| Supply | 0–12 V DC regulated, built-in |
| Meters | Digital voltmeter and ammeter |
| Current range | Typically 0–500 mA (by model) |
| Resistance control | Variable resistor / rheostat |
| Protection | Overload and short-circuit |
| Connections | Banana terminals or fixed test points |
| Mains input | 230 V or 110 V AC (as required) |
| Housing | Insulated |
Where This Is Used
Used in school physics, polytechnic and first-year engineering labs for V-I graphs and resistance measurement. The Ohm's Law Apparatus (with Power Supply) (Product ID: 14530) does the same job with analog or digital meters, and the Ohm's Law Apparatus (Product ID: 14531) uses an external supply. Browse the full Electronics Engineering Lab Equipment range or related Electricity and Magnetism products.
Frequently Asked Questions
What does the experiment show?
That current is proportional to voltage for a fixed resistance, V = IR.
What is the voltage range?
0–12 V DC from the built-in regulated supply.
Are the meters analog or digital?
Both meters are digital.
