Radial Flow Turbine Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14134

This experimental unit is designed to study the characteristic behavior of a reaction turbine using compressed air as the working medium. It demonstrates the fundamental principle of reaction or radial flow turbines: the conversion of pressure energy into kinetic energy within the rotor, resulting in the static pressure being higher in front of the rotor than behind it. The setup allows students to understand analogies to turbines powered by steam or water.

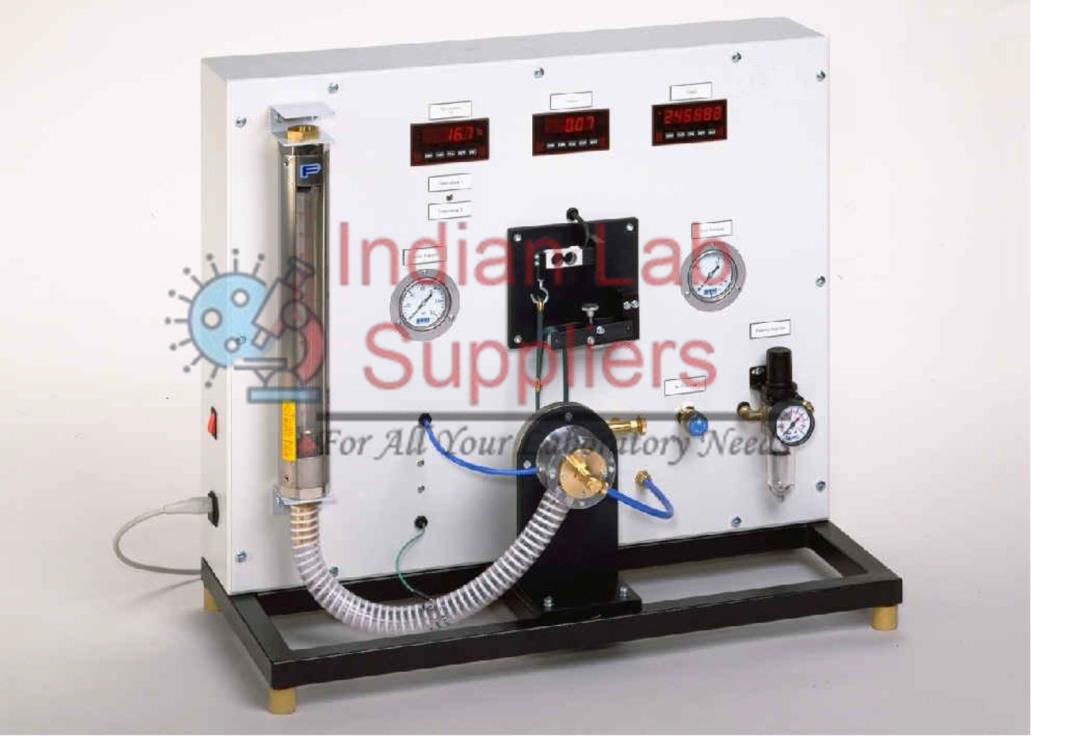

The apparatus is a closed, compressed air-operated system featuring a turbine rotor with four nozzle-shaped exits mounted in a transparent housing. The exiting air jet drives the rotor based on the reaction principle. Key parameters like torque, speed, pressure, and volumetric flow rate are measured and digitally displayed. A quick-action stop valve is included as a safety mechanism against over-speed.

Technical Specifications and Components

Feature / Component	Parameter / Specification	Detail / Value
Turbine Type	Classification	Radial Flow Reaction Turbine (Air operated).
Maximum Power Output	Capacity	25 W at 30,000 min?¹ (RPM).
Rotor	Dimensions and Features	Rotor diameter: 50 mm; 4 outlet nozzles, 1.5 mm diameter each.
Air Preparation	Pressure Controller Range	Adjustable: 0.5 to 8.5 bar.
Torque Measurement	Device	Band brake (air-cooled brake drum) with a force sensor.
Speed Measurement	Device and Range	Optical speed sensor; Range: 0 to 50,000 min?¹.
Volumetric Flow	Device and Range	Rotameter; Range: 25 to 315 L/min.
Inlet Pressure	Manometer Range	0 to 2.5 bar.
Outlet Pressure	Manometer Range	0 to 0.1 bar.
Temperature Sensor	Range	-20 to 1100 °C.
Safety Feature	Mechanism	Quick-action stop valve (over-speed protection).
Required Services	Air Supply	Compressed air supply 6 to 10 bar, max. 300 L/min.
Required Services	Electrical Supply	230 V, 50 Hz, 1 phase OR 120 V, 60 Hz, 1 phase.

Experimental Objectives

Experiment	Key Measurement / Investigation	Fluid Mechanics Principle
Characteristic Behavior	Recording the torque characteristic and overall operational behavior of a reaction turbine.	Understanding the relationship between torque, speed, and pressure ratio.
Performance Mapping	Determining power output dependent on volumetric flow rate, pressure, and speed.	Generating performance curves.
Turbine Efficiency	Determination of the turbine efficiency ($\eta$).	Calculating the ratio of mechanical output power to hydraulic/pneumatic input power.
Load Operation	Investigation of partial load operation due to throttling (using the flow rate valve).	Studying the effect of reduced flow/pressure on turbine performance.
