Principles of Air Flow Studies Apparatus

Product Code : SCL-CELE-14206

Indian Lab Suppliers supplies the Principles of Air Flow Studies Apparatus (Product ID: 14206) as part of its Civil Engineering Lab Equipment range. It records fan characteristics and studies velocity, pressure and heat transfer in air flow.

Quick Answer

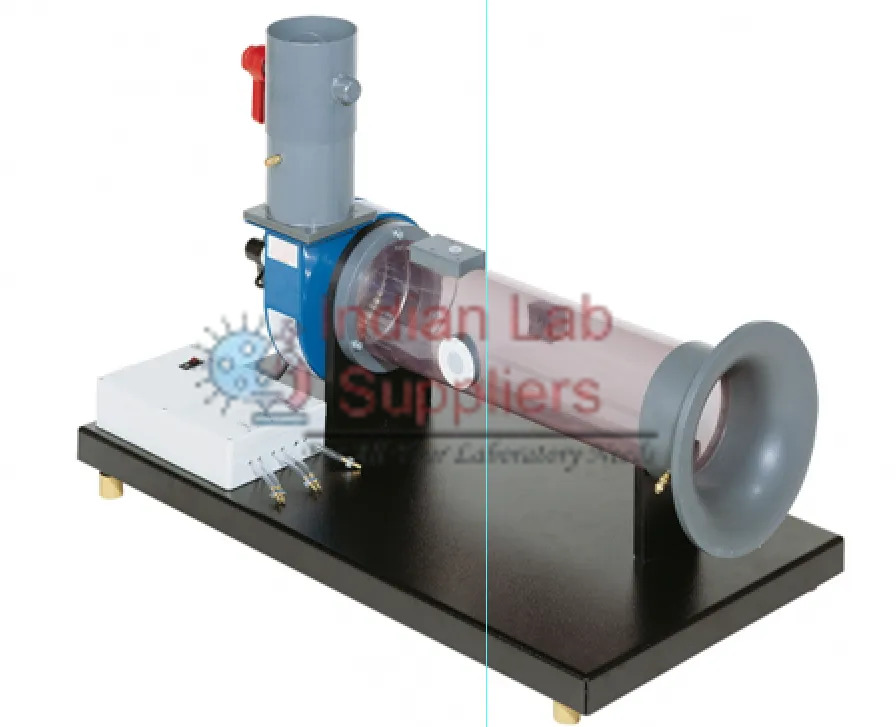

A 90 W radial fan (2800 rpm, up to 460 m³/h and 480 Pa) draws air through a transparent 134.4 mm intake with inlet contour and delivers through a 99.4 mm pipe with throttle valve. Pressure sensors (1 x ±10 mbar, 2 x ±1 mbar) and a 0-200 °C temperature sensor give velocity, flow and fan curves. Accessories allow studies of velocity profiles, flow round a cylinder, pipe and bend losses and the cooling of a heated copper cylinder.

Key Specifications

ParameterDetail
FanRadial, 90 W, 2800 rpm, 460 m³/h, 480 Pa
Intake pipe134.4 mm ID, transparent, inlet contour
Delivery pipe99.4 mm ID, throttle valve
SensorsPressure ±10 mbar and 2 x ±1 mbar; temperature 0-200 °C
SoftwareOptional USB
Power220-240 V, 50 Hz

Where This Is Used

A power meter is needed to find fan efficiency. Related: Air Flow Studies Apparatus (Product ID: 14143) and Air Flow Bench - Modular (Product ID: 14040). Browse the full Civil Engineering Lab Equipment range or related Engineering Lab Equipment apparatus.

Frequently Asked Questions

What can be studied?
Fan curves, velocity profiles, flow round a cylinder, friction losses and heat transfer.

What is the maximum flow?
460 m³/h.

Is software included?
It is optional.
