Air Flow Studies Apparatus Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-CELE-14143
Indian Lab Suppliers supplies the Air Flow Studies Apparatus (Product ID: 14143) as part of its Civil Engineering Lab Equipment range. It studies duct flow, jets and fitting losses in air.
Quick Answer

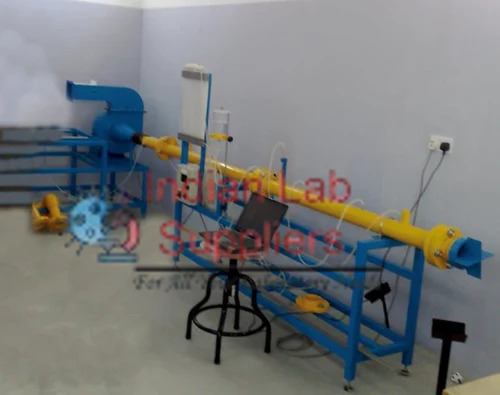

A centrifugal fan (about 250 L/s) draws air through a 3 m, 80 mm smooth pipe with bell-mouth entry and straightening vanes, at up to 35 m/s. Two nozzles (50 and 80 mm) and a 50 mm orifice measure flow, equally spaced tappings give the pressure gradient, and a Pitot probe traverses six stations for boundary layer profiles. A 30 mm jet outlet with a two-way Pitot-static traverse (160 x 600 mm) studies jet spread, and a bend and mitred cascade elbow give fitting losses. A 15-tube kerosene inclined manometer reads pressures.
Key Specifications
| Parameter | Detail |
|---|---|
| Fan | Centrifugal, about 250 L/s |
| Pipe | Fibreglass or stainless steel, 3 m, about 80 mm, bell mouth |
| Velocity | Up to 35 m/s |
| Flow devices | Nozzles 50 and 80 mm; orifice 50 mm |
| Jet | 30 mm outlet; traverse 160 x 600 mm |
| Fittings | Bend; mitred cascade elbow |
| Manometer | 15-tube inclined, 0.6 m, kerosene |
| Size | 0.8 x 1.0 x 4.0 m |
| Power | 220-240 V, 1 phase, 50 Hz |
Where This Is Used
A smaller airflow principles unit and a venturi tube accessory are also listed; ask if you need them. Related: Air Flow Bench - Modular (Product ID: 14040) and Principles of Air Flow Studies Apparatus (Product ID: 14206). Browse the full Civil Engineering Lab Equipment range or related Engineering Lab Equipment apparatus.
Frequently Asked Questions
What flow devices are included?
Two nozzles and an orifice plate.
Can jets be studied?
Yes, with a two-way Pitot-static traverse.
What manometer is used?
A 15-tube inclined kerosene manometer.
Related Categories
Civil Engineering Lab Equipment · Engineering Lab Equipment · Water and Sanitation
Request a Quote
For pricing, bulk quantities or tender documentation on the Air Flow Studies Apparatus, reach our team via Contact Us or submit your requirement through our Tenders page.
