Multi Head Diaphragm Pump Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14195

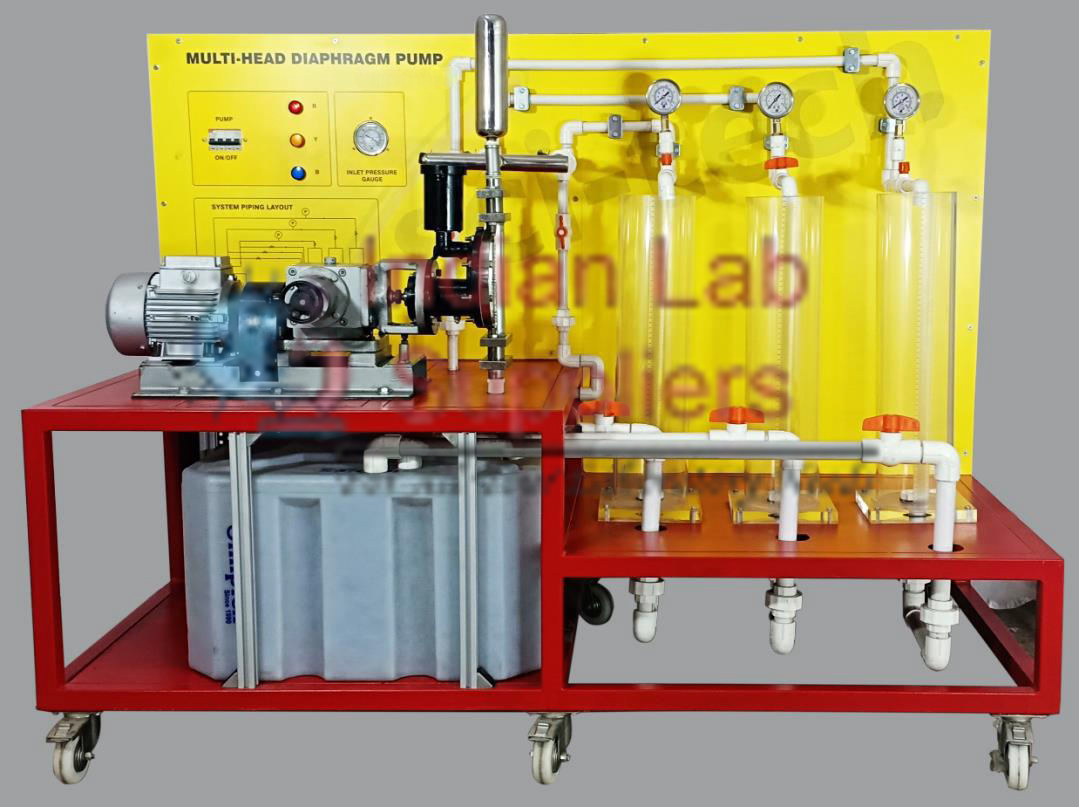

Indian Lab Suppliers supplies the Multi Head Diaphragm Pump (Product ID: 14195) as part of its Civil Engineering Lab Equipment range. It studies metering and mixing with a three-head diaphragm pump.

Quick Answer

Three diaphragm heads share a common stroke rate (0-100 per min, set on the control box) but each has its own stroke length (up to about 6 mm), delivering 0-18 L/h at up to about 100 m head. Each head has intake (-1 to 0 bar) and delivery (0-10 bar) gauges and a 2-6 bar overflow valve for counter pressure. A 60 L feed tank, three scaled 5 L tanks with 0-20 cm level scales and a stopwatch give flow and mixing ratios.

Key Specifications

Parameter	Detail
Heads	3 diaphragm heads, stroke up to about 6 mm each
Flow	0-18 L/h per head
Head	About 100 m; suction about 3 m
Stroke rate	0-100 per min (common)
Gauges	3 x 0-10 bar delivery; 3 x -1 to 0 bar intake
Overflow valves	3, 2-6 bar
Tanks	Feed 60 L; 3 scaled 5 L
Power	220-240 V, 1 phase, 50 Hz

Where This Is Used

Diaphragm pumps are used where leak-free, precise dosing matters, as in chemical and food processing. Related: Plunger Pump Demo Apparatus (Product ID: 14192). Browse the full Civil Engineering Lab Equipment range or related Engineering Lab Equipment apparatus.

Frequently Asked Questions

How many heads does it have?
Three.

Can each head be set separately?
Yes, by its stroke length; stroke rate is common.

What is the flow per head?
0 to 18 L/h.
