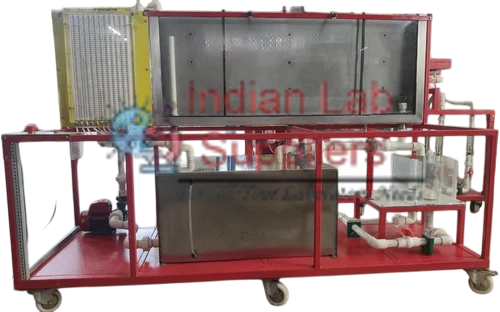

Drainage & Seepage Tank Demo (2m) Manufacturer,Supplier and Exporter in India
-Photoroom (1).png)
Product Code : SCL-CELE-14175
Indian Lab Suppliers supplies the Drainage & Seepage Tank Demo (2m) (Product ID: 14175) as part of its Civil Engineering Lab Equipment range. It visualises seepage and drainage through soil with a glass-fronted tank.
Quick Answer
The working section is 1500 x 100 x 600 mm, with a toughened glass front and an aluminium back panel that takes pressure tappings. Adjustable overflows at each end hold constant levels, dye injection shows flow lines, and a centrifugal pump with control valve circulates water from a sump. Accessories include a foundation pressure plate, straight and curved permeable membranes, a lateral pressure plate and a tile drain. A data acquisition option is available.
Key Specifications
| Parameter | Detail |
|---|---|
| Working section | 1500 x 100 x 600 mm |
| Tank | Toughened glass front, aluminium back |
| Levels | 2 adjustable overflows |
| Circulation | Centrifugal pump, sump, starter, control valve |
| Visualisation | Dye injection |
| Accessories | Foundation plate, straight and curved membranes, lateral pressure plate, tile drain |
| Size | 1.60 x 0.60 x 1.45 m |
Where This Is Used
Students study flow nets, uplift under foundations and drainage to tile drains. Related: Visualisation of Seepage Flow (Product ID: 14087) and Permeability Tank Apparatus (Product ID: 14152). Browse the full Civil Engineering Lab Equipment range or related Water and Sanitation apparatus.
Frequently Asked Questions
What size is the working section?
1500 x 100 x 600 mm.
How are flow lines shown?
With dye injection.
Which accessories are included?
Foundation and lateral pressure plates, membranes and a tile drain.
