Product Code : SCL-CELE-13923

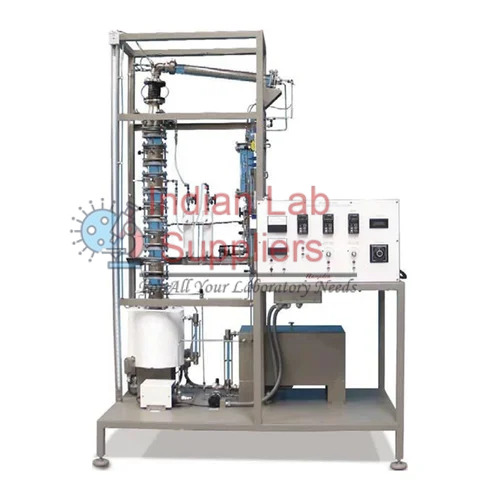

Indian Lab Suppliers supplies the Distillation Column With DAQ (Product ID: 13923) as part of its Civil Engineering Lab Equipment range. It is a pilot-scale glass distillation unit with sieve-plate and packed columns and PC data logging.
Quick Answer
Feed is pumped by a peristaltic pump into borosilicate glass columns about 2 m high and 50 mm in diameter: one with 8 sieve plates and down-comers and one packed, for comparison. Three electrically heated 3 L re-boilers, a refrigerated condenser, a solenoid three-way reflux valve and spiral coolers for distillate and bottoms are fitted. Temperature sensors on every plate and a differential manometer feed USB data acquisition software, and a vacuum system allows reduced-pressure runs.
Key Specifications
| Parameter | Detail |
|---|---|
| Columns | Borosilicate glass, about 2 m x 50 mm; sieve plate (8 plates) and packed |
| Re-boilers | 3 x 3 L, electrically heated |
| Condenser | Refrigerated, down to 0 °C, with cooling water flow measurement |
| Reflux | Solenoid-operated three-way valve |
| Vessels | Four 3 L flasks, two 5 L feed vessels |
| Instruments | Temperature on all plates, feed, reflux, coolers and re-boilers; differential manometer; vacuum gauge |
| Data | USB DAQ software for Windows |
| Power | 230 V AC, 1 phase |
Where This Is Used
Chemical engineering students determine Murphree tray efficiency and compare plate and packed columns. An operation and maintenance manual is included. Browse the full Civil Engineering Lab Equipment range or related Engineering Lab Equipment apparatus.
Frequently Asked Questions
Which column types are included?
A sieve-plate column with 8 plates and a packed column.
Can it run under vacuum?
Yes, a vacuum system with gauge is fitted.
How is data recorded?
With USB data acquisition software on a Windows PC.
