Discrete Component Trainer Manufacturer,Supplier and Exporter in India
.jpeg)
Product Code : SCL-EELE-14508

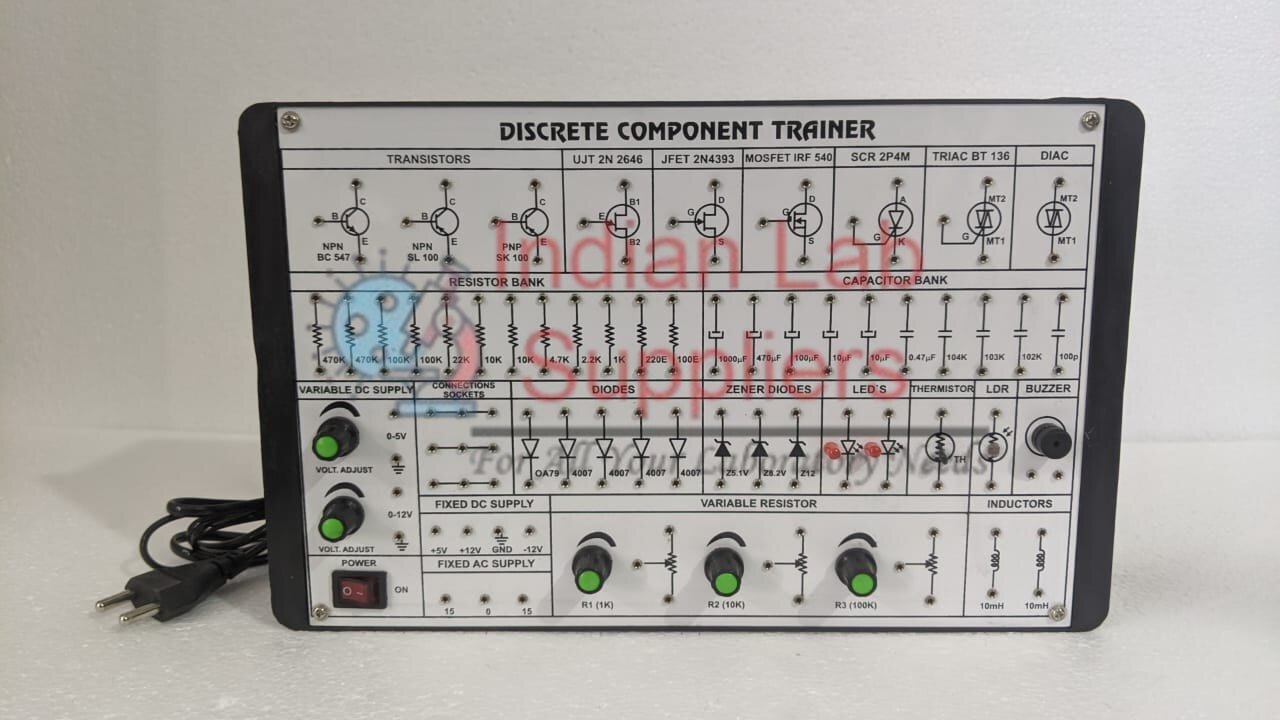

Indian Lab Suppliers supplies the Discrete Component Trainer (Product ID: 14508) as part of its electronics engineering lab equipment range. It is a trainer for measuring the characteristics of individual semiconductor devices and passive components.
Quick Answer
The board carries rectifier, Zener and light-emitting diodes, NPN and PNP transistors, a JFET and a MOSFET, plus resistors, capacitors and inductors; an SCR and TRIAC are optional. A built-in 0–12 V regulated DC supply (range may vary by model) runs from 230 V AC, 50 Hz and is protected by a fuse and short-circuit protection. Students plot diode V-I curves, compare common-emitter, common-base and common-collector transistor configurations, measure FET characteristics, study RC charging and discharging and read resistor colour codes. LDRs and thermistors are mentioned but not in the component list, so please confirm the exact component set at quotation.
Key Specifications
| Parameter | Detail |
|---|---|
| Mains input | 230 V AC, 50 Hz |
| DC output | 0–12 V regulated (or as per model) |
| Diodes | Rectifier, Zener, LED |
| Transistors | NPN, PNP, JFET, MOSFET |
| Passives | Resistors, capacitors, inductors |
| Optional | SCR, TRIAC |
| Terminals | Banana sockets, test points |
| Protection | Fuse and short-circuit |
| Supplied with | Instruction manual |
Where This Is Used
Used in basic electronics and device-characteristics labs in diploma and engineering courses, usually before IC work on the Analog & Digital IC Trainer Kit (Product ID: 14505). Readings are taken at the test points with a multimeter or CRO. Browse the full Electronics Engineering Lab Equipment range or related Electronics Lab Equipment products.
Frequently Asked Questions
Which transistor configurations can be studied?
Common emitter, common base and common collector.
Are an SCR and TRIAC included?
They are optional; please confirm at quotation.
What DC supply is built in?
A regulated 0–12 V DC supply, or as per model.
Related Categories
Electronics Engineering Lab Equipment · Electronics Lab Equipment · Engineering Lab Equipment
Request a Quote
For pricing, bulk quantities or tender documentation on the Discrete Component Trainer, reach our team via Contact Us or submit your requirement through our Tenders page.
