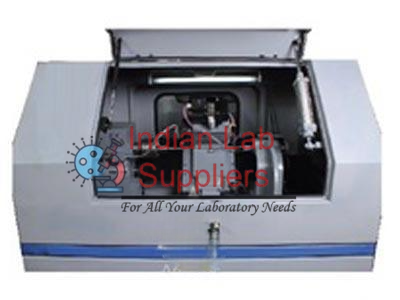

CNC Lathe Trainer - Slant Bed Manufacturer,Supplier and Exporter in India
.png)
Product Code : SCL-ELE-13937
This unit is a highly capable platform for CNC machining and
programming, utilizing a PLC based control system and servo motors
for precision axis control. It is designed to simulate industrial machining
processes, featuring an 8-station automatic tool changer and
comprehensive safety measures.
Controller Specifications
The advanced control system ensures high accuracy and
flexibility for complex machining tasks.
- Control
System Type: PLC based System.
- Axis
Motor and Drive: Servo motor and drive with feedback (an
upgrade from stepper motors), providing highly precise and dynamic
control.
- Safety: Power
Devices are protected against Short Circuit, over
Temperature, and include single phase protection.
- Input/Output: Input
to Servo is Optically Isolated; Motor Drive is TTL Compatible.
- Motion
Control:
- Interpolation:
Supports Linear, Circular, and Parabolic interpolation.
- Cycles:
Supports Circular Interpolation and Canned Cycles.
- Threading:
Capable of Straight and Taper threading.
- Programming:
Utilizes standard CNC codes: G, M, S, T, F, I, K, M, F.
- Simulation: Real
Time Tool Path Simulation is provided.
Machine, Axis, and
Spindle Details
The machine structure is robust, designed for high-precision
operations, and features a larger distance between centers than the previous
model.
|
Parameter |
Specification |
|
Center Height |
100 mm |
|
Swing Over Carriage |
80 mm |
|
Distance between Center |
825 mm |
|
Automatic Tool Changer |
Automatic - 8 station |
|
Rapid Travel |
700 mm per minute |
|
Resolution (Z and X Axis) |
5 micron |
|
Weight |
700 kg |
|
Dimensions |
1250 mm x 900 mm x 1500 mm |
|
Automatic Operation |
Provided |
|
Axis and Spindle |
Specification |
|
X Axis Travel |
100 mm |
|
Z Axis Travel |
300 mm |
|
Spindle Power |
2 HP (Horsepower) |
|
Spindle Speed |
Continuous variable |
|
Speed Range |
100 to 3000 RPM (revolutions per minute) |
|
Inside Taper |
Mt3 |
