6 in 1 Logic Gate Apparatus Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-EELE-14528

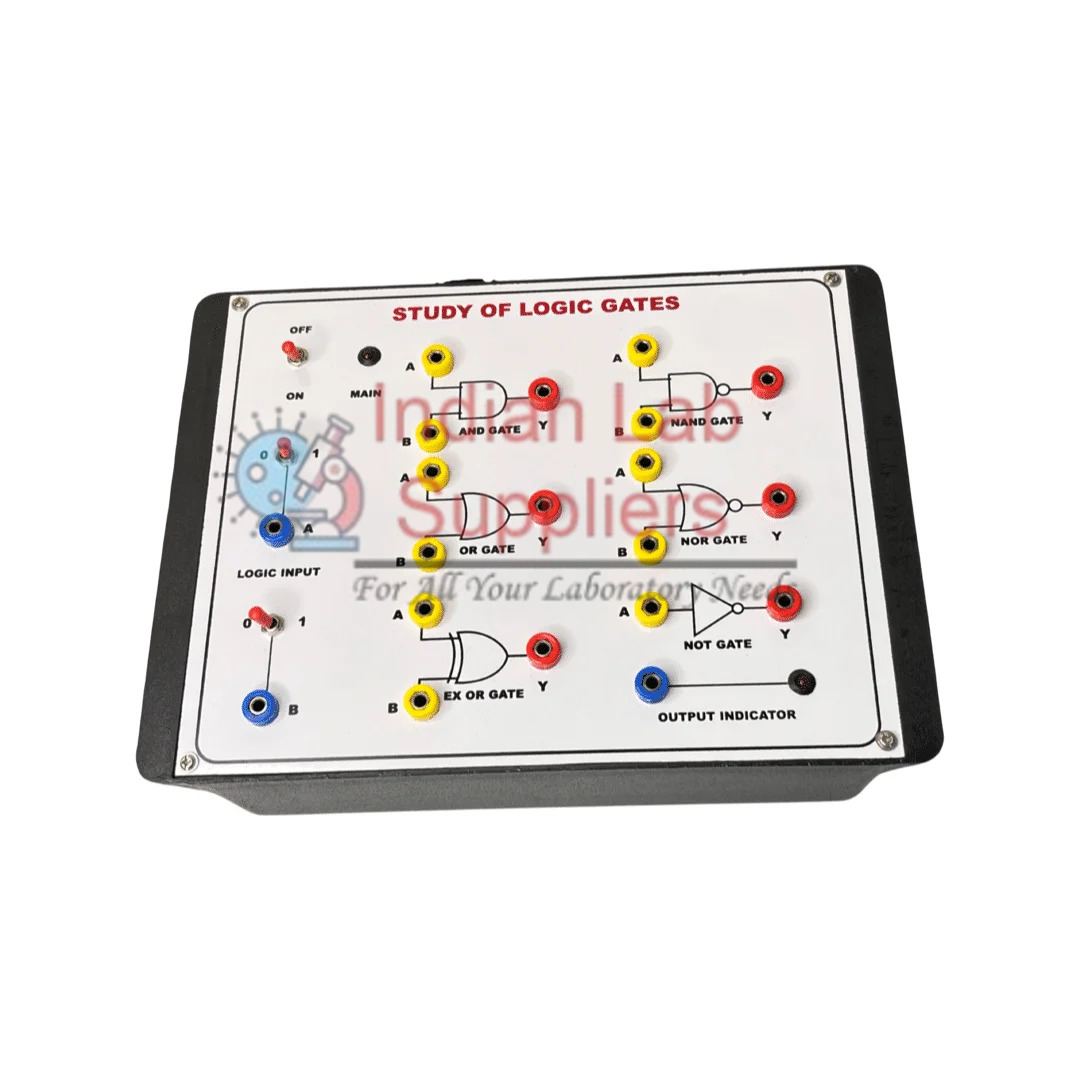

The 6-in-1 Logic Gate Apparatus is an essential electronic training device designed to demonstrate the functionality of basic digital logic gates used in electronic circuits. This apparatus allows students to study the behavior of AND, OR, NOT, NAND, NOR, and XOR gates in a single compact setup.
It is widely used in electronics labs, engineering colleges, polytechnic institutes, TVET labs, and school-level electronics practical classes. The instrument provides clear visualization of logic input/output states, enabling a practical understanding of fundamental digital electronics concepts.
Key Features
- 6 Logic Gates in One Unit: Includes AND, OR, NOT, NAND, NOR, and XOR gates for comprehensive learning.
- LED Output Indicators: Bright LED indicators display output states for easy observation.
- Easy-to-Use Input Switches: Toggle switches allow quick selection of logic states (0/1).
- Inbuilt Regulated Power Supply: Ensures stable operation during experiments.
- Short-Circuit Protected: High-quality circuitry prevents accidental damage.
- Robust Construction: Made with high-durability components suitable for repeated classroom use.
- Clear Labelling: Gate symbols and truth tables are clearly marked for student reference.
- Ideal for Beginners: Perfect for introducing students to digital logic, Boolean algebra, and circuit design.
Technical Specifications
|
Parameter |
Details |
|
Model |
6-in-1 Logic Gate Trainer / Apparatus |
|
Logic Gates Included |
AND, OR, NOT, NAND, NOR, XOR |
|
Power Supply |
5V DC (inbuilt regulated supply) |
|
Input Controls |
Toggle switches (0/1 logic level) |
|
Output Indication |
LED indicators |
|
Circuit Protection |
Short-circuit protection |
|
Body Material |
High-strength plastic or metal base (varies by model) |
|
Wiring |
Banana/patch cords or fixed terminals |
|
Dimensions |
Compact, classroom-friendly size |
Why Choose an Indian Lab Supplier?
Indian manufacturers offer precise and durable logic gate trainers built as per engineering academic standards.
Indian suppliers provide cost-effective lab instruments without compromising on quality or functionality.
Apparatus are developed according to CBSE, NCERT, AICTE, and polytechnic electronics lab requirements.
Easy availability of spare parts, quick service, and direct support from local vendors.
Indian suppliers can tailor options like external power supply, additional gates, or expanded experiments.
