Digital IC Trainer Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-EELE-14507

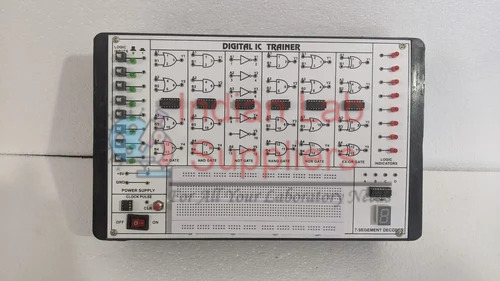

Indian Lab Suppliers supplies the Digital IC Trainer (Product ID: 14507) as part of its electronics engineering lab equipment range. It is a bench trainer for wiring and testing digital logic circuits built from plug-in ICs.
Quick Answer
A regulated 5 V DC supply (±12 V optional) powers 14-pin and 16-pin IC sockets, which may be ZIF or standard. Logic inputs come from toggle switches and debounced push buttons, outputs show on LED indicators, and a variable-frequency square-wave clock drives sequential circuits. A solderless breadboard allows extra circuits, and outputs are protected against overload and short circuit. Students build gates, adders, decoders, multiplexers and demultiplexers, flip-flops, counters and shift registers. The IC set and dimensions are not fixed, so please confirm them at quotation.
Key Specifications
| Parameter | Detail |
|---|---|
| Supply | 5 V DC regulated (±12 V optional) |
| Inputs | Toggle switches, debounced push buttons |
| Indicators | LEDs for logic 0 and 1 |
| Clock | Variable-frequency square wave |
| IC sockets | 14-pin and 16-pin, ZIF or standard |
| Prototyping | Solderless breadboard |
| Connections | Banana sockets and test points |
| Protection | Overload and short-circuit |
| Enclosure | ABS or powder-coated metal |
Where This Is Used
Used in digital electronics and logic design labs for combinational and sequential circuit experiments. The Digital IC Trainer with Digital Voltmeter (Product ID: 14509) adds a digital voltmeter, and the Analog & Digital IC Trainer Kit (Product ID: 14505) also covers analog circuits. Browse the full Electronics Engineering Lab Equipment range or related Electronics Lab Equipment products.
Frequently Asked Questions
Does it have a clock source?
Yes, a variable-frequency square-wave clock for sequential circuits.
Which IC packages fit?
14-pin and 16-pin ICs.
Are ICs supplied?
Gate, flip-flop and counter ICs are optional; please confirm the IC set at quotation.
Related Categories
Electronics Engineering Lab Equipment · Electronics Lab Equipment · Engineering Lab Equipment
Request a Quote
For pricing, bulk quantities or tender documentation on the Digital IC Trainer, reach our team via Contact Us or submit your requirement through our Tenders page.
