Product Code : SCL-CELE-14206

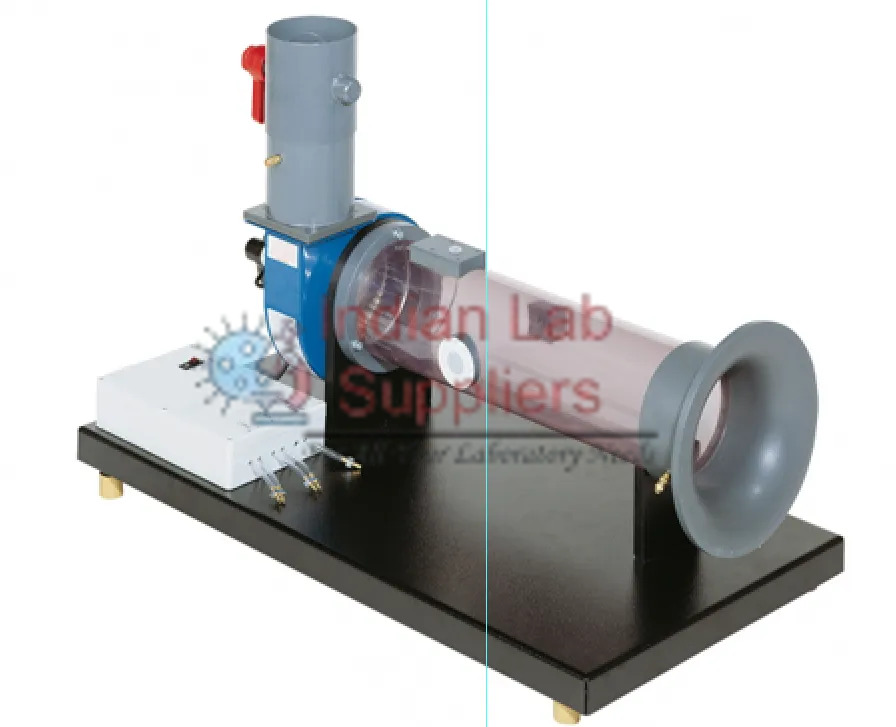

The Principles of Air Flow Studies
Apparatus is designed for comprehensive experiments on the fundamentals
of airflow and fan performance. It enables the study of airflow
characteristics, fan efficiency, and aerodynamic behavior around different
bodies.
The system includes a radial fan with a
controllable throttle valve, allowing the recording of the fan
characteristic curve. The transparent intake and delivery pipes allow clear
observation of flow behavior, while the inlet contour minimizes
turbulence and ensures uniform velocity distribution.
The unit supports a wide range of accessories
for studying pressure distribution, velocity profiles, heat
transfer, and frictional losses. Optional data acquisition
software enhances experiment accuracy, visualization, and data analysis.
Features
- Demonstration of fundamental airflow principles
- Transparent intake pipe with
mounting options for airflow accessories
- Inlet contour for
reducing turbulence and ensuring smooth flow
- Throttle valve on
the delivery pipe for airflow adjustment
- Electronic measurement of
pressure and temperature
- Velocity determination using dynamic pressure measurements
- Flow rate calculation via differential pressure method
- Optional PC-based data acquisition software for real-time visualization and analysis
- Enables study of fan characteristics, friction losses,
and aerodynamic behavior
- Compact and durable design suitable for fluid mechanics
laboratories
Specifications
|
Component |
Specification |
|
Radial Fan |
Power consumption: 90 W |
|
Delivery Pipe |
Outer diameter: 110 mm |
|
Intake Pipe |
Outer diameter: 140 mm |
|
Measuring Ranges |
Pressure: ±10 mbar (1x) |
|
Software (optional) |
Data acquisition and control via USB under Windows 7, 8.1, or 10 |
List of
Experiments
- Recording of a fan characteristic curve
- Determination of fan efficiency (with
power meter HM 240.02)
- Velocity distribution in a
pipe
- Velocity distribution
behind a cylinder in transverse flow
- Pressure distribution
around a cylinder in transverse flow
- Measurement of friction losses in
straight pipes, pipe bends, and pipe angles
- Recording of cooling curve of a
copper cylinder exposed to airflow
- Determination of heat transfer coefficients from cooling data
Optional
Accessories
- Electronic total pressure sensor
- Pressure distribution measurement around a cylinder
- Heat transfer cylinder for transverse flow study
- Straight pipes, bends, and angle fittings for friction loss studies
- Data acquisition and visualization software
Services
Required
- Mains Supply:
220–240 V AC, 50 Hz
