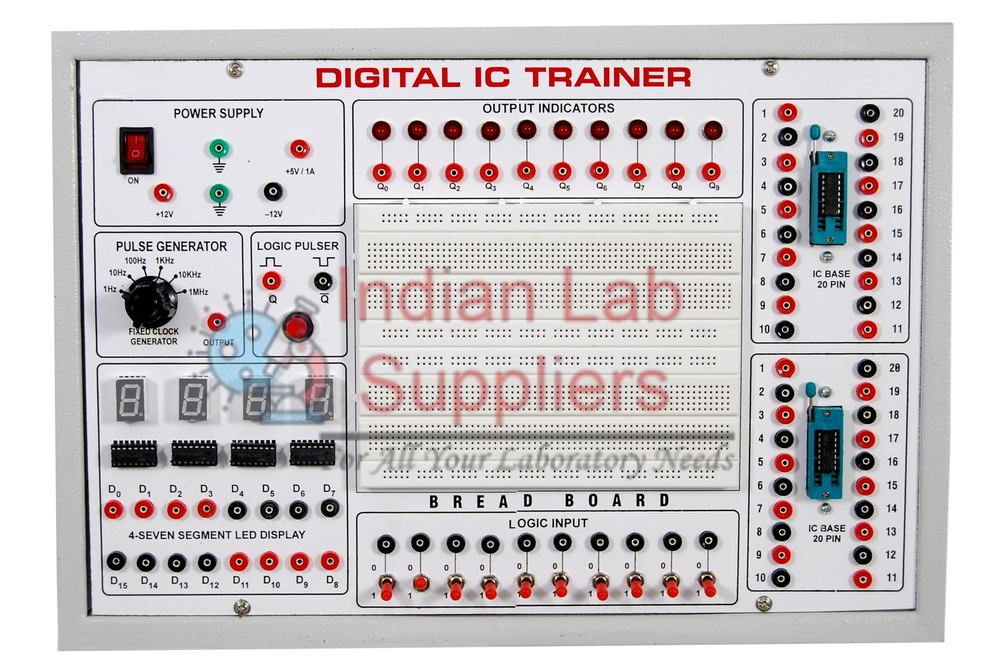

Digital IC Trainer with Digital Voltmeter Manufacturer,Supplier and Exporter in India
.png)
Product Code : SCL-EELE-14509
Indian Lab Suppliers supplies the Digital IC Trainer with Digital Voltmeter (Product ID: 14509) as part of its electronics engineering lab equipment range. It is a digital logic trainer with a built-in digital voltmeter for checking supply and logic-level voltages during experiments.
Quick Answer
A 5 V regulated, short-circuit-protected supply powers TTL-compatible logic, with toggle and push-button inputs, LED logic indicators and a solderless breadboard. The built-in digital voltmeter reads typically 0–20 V DC on an LED or LCD display, so supply rails and logic levels can be checked without a separate meter. Gates, flip-flops, counters, encoder, decoder, multiplexer and demultiplexer ICs are included, the exact set varying by model. Patch cords, power cord, user manual and experiment booklet are supplied. Please confirm the IC set and voltmeter display type at quotation.
Key Specifications
| Parameter | Detail |
|---|---|
| Supply | 5 V DC regulated, short-circuit protected |
| Digital voltmeter | 0–20 V DC (typical), LED or LCD display |
| Logic family | TTL compatible |
| Included ICs | Gates, flip-flops, counters, encoder, decoder, MUX, DEMUX (set varies by model) |
| Inputs | Toggle and push-button switches |
| Indicators | LED logic indicators |
| Breadboard | Solderless |
| Enclosure | Powder-coated metal or ABS |
| Accessories | Patch cords, power cord, user manual, experiment booklet |
Where This Is Used
Used in digital electronics labs where students also record logic-level voltages, for example when comparing TTL high and low input thresholds. The Digital IC Trainer (Product ID: 14507) is the version without the meter. Browse the full Electronics Engineering Lab Equipment range or related Electronics Lab Equipment products.
Frequently Asked Questions
What can the voltmeter measure?
DC voltages, typically 0–20 V, such as supply rails and logic levels.
Which logic family does it suit?
TTL-compatible ICs at 5 V.
What accessories come with it?
Patch cords, power cord, user manual and an experiment booklet.
Related Categories
Electronics Engineering Lab Equipment · Electronics Lab Equipment · Engineering Lab Equipment
Request a Quote
For pricing, bulk quantities or tender documentation on the Digital IC Trainer with Digital Voltmeter, reach our team via Contact Us or submit your requirement through our Tenders page.
