Product Code : SCL-LAO-14616

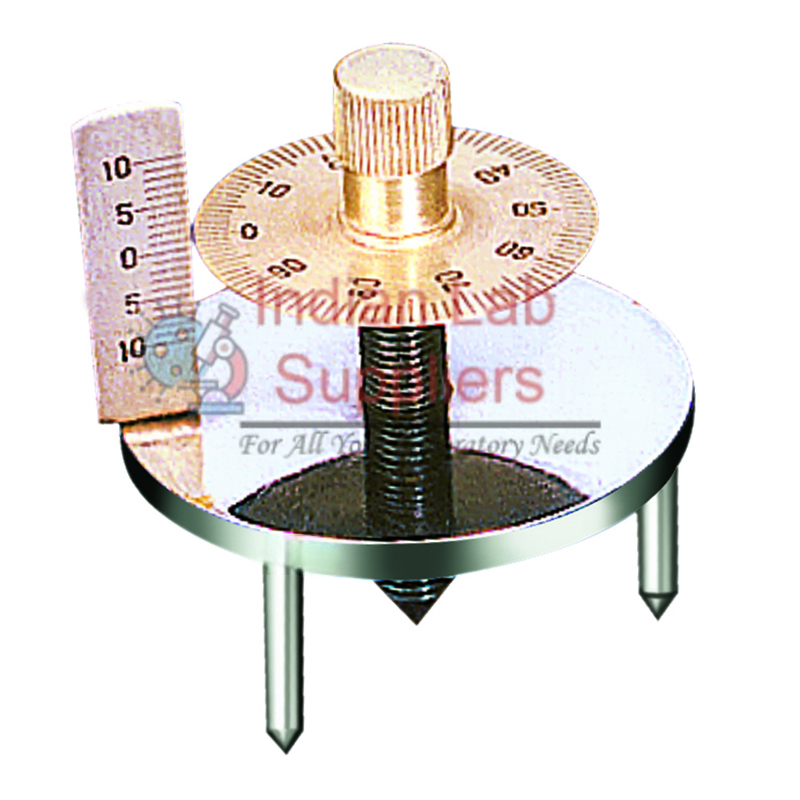

Indian Lab Suppliers supplies the Spherometer (Product ID: 14616) as part of its light and optics range. It is a three-legged micrometer instrument for measuring the radius of curvature of lenses and other curved surfaces.
Quick Answer
The three fixed legs stand at the corners of an equilateral triangle, and a central micrometer screw with a 0.5 mm pitch and circular scale measures the small height h of the curved surface relative to the plane of the legs. With l the mean distance between the legs, the radius of curvature is R = l²/6h + h/2. Readings are zeroed on a flat glass plate. The body is brass or aluminium alloy with a chrome-plated finish, and the leg circle is 30–50 mm across depending on design. Least count is 0.01 mm as standard; a 0.001 mm model is also listed, so please confirm least count at quotation.
Key Specifications
| Parameter | Detail |
|---|---|
| Legs | Three, on an equilateral triangle |
| Screw pitch | 0.5 mm |
| Least count | 0.01 mm (0.001 mm on some models; confirm) |
| Base diameter | 30–50 mm (by design) |
| Material | Brass or aluminium alloy, chrome-plated |
Where This Is Used
Used to find the radius of curvature of a Concave Lens (Product ID: 11885) or of the lens in a Newton's Ring Apparatus (Product ID: 10817). Browse the full Light and Optics range or related Physics Lab Equipment products.
Frequently Asked Questions
What does a spherometer measure?
The radius of curvature of a curved surface.
What is the screw pitch?
0.5 mm.
Which formula is used?
R = l²/6h + h/2, where l is the leg spacing and h the measured height.
Related Categories
Light and Optics · Physics Lab Equipment · Properties of Matter
Request a Quote
For pricing, bulk quantities or tender documentation on the Spherometer, reach our team via Contact Us or submit your requirement through our Tenders page.
