Product Code : SCL-LAO-14648

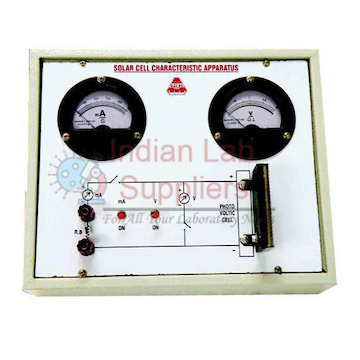

Indian Lab Suppliers supplies the Solar Cell Characteristics Apparatus (Product ID: 14648) as part of its light and optics range. It is a bench setup for measuring how a solar cell’s voltage, current and power change with load and light level.
Quick Answer
A monocrystalline or polycrystalline cell (open-circuit voltage 0.45–0.6 V, short-circuit current 100–500 mA, by model) is lit by an adjustable lamp covering about 50–2000 lux. A digital voltmeter (0–2 V) and ammeter (0–500 mA) read the output while a variable load resistor or decade box is stepped from short circuit towards open circuit. Students plot I–V and P–V curves, find the maximum power point and calculate the fill factor FF = Pmax / (Voc × Isc) at different light levels. The lamp runs on AC mains; the cell circuit itself is low voltage. Please confirm cell type and ratings at quotation.
Key Specifications
| Parameter | Detail |
|---|---|
| Cell | Monocrystalline or polycrystalline (by model) |
| Open-circuit voltage | 0.45–0.6 V |
| Short-circuit current | 100–500 mA |
| Light source | Adjustable lamp, approx. 50–2000 lux |
| Meters | Digital voltmeter 0–2 V, digital ammeter 0–500 mA |
| Load | Variable resistor or decade resistance |
| Power | AC mains (lamp only) |
| Mounting | Base panel with labelled components |
Where This Is Used
Used in physics and renewable energy practicals; a simpler demonstration of a solar cell driving an LED and motor is the Solar Energy Kit (Product ID: 10226). Browse the full Light and Optics range or related Electrical and Electronics products.
Frequently Asked Questions
What curves can be plotted?
I–V and P–V curves at different light levels.
What meters are included?
A digital voltmeter (0–2 V) and a digital ammeter (0–500 mA).
What needs mains power?
Only the lamp.
