Resistance in Series and Parallel Manufacturer,Supplier and Exporter in India

Product Code : SCL-LM-14581

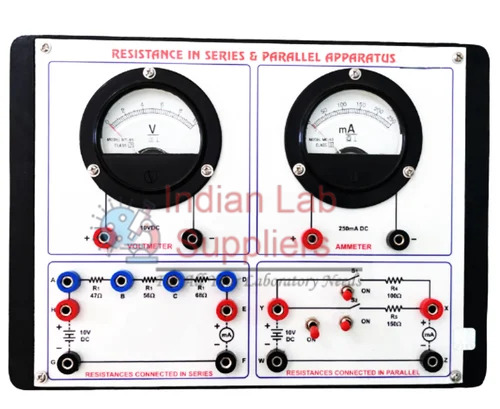

Indian Lab Suppliers supplies the Resistance in Series and Parallel (Product ID: 14581) as part of its lab meters range. This board lets students connect fixed resistors in series and parallel and check the equivalent resistance.

Quick Answer

Fixed resistors are mounted on a Bakelite or powder-coated metal board with brass binding posts, and connecting wires are included. Typical values are 10, 47, 100, 220, 330 Ω and 1 kΩ, at ±1% or ±5% tolerance. In series the resistances add, R = R₁ + R₂; in parallel the reciprocals add, 1/R = 1/R₁ + 1/R₂. Use a low-voltage DC supply of up to 12 V. Please confirm the resistor values and tolerance at quotation.

Key Specifications

Parameter	Detail
Resistors	Typically 10, 47, 100, 220, 330 Ω, 1 kΩ
Tolerance	±1% or ±5%
Board	Bakelite or powder-coated metal
Terminals	Brass binding posts
Supply	Low-voltage DC, 0–12 V
Included	Connecting wires

Where This Is Used

Used for Ohm’s law and Kirchhoff’s rules practicals with the Ammeter (Product ID: 10822) and Voltmeter (Product ID: 10826). See also the Ohms Law Apparatus (Product ID: 10824). Browse the full Lab Meters range or related Electrical and Electronics products.

Frequently Asked Questions

How do resistors combine in series?
Their resistances add.

And in parallel?
The reciprocals add, so the total is less than the smallest resistor.

What supply should be used?
Low-voltage DC, up to 12 V.

Related Categories

Lab Meters · Electrical and Electronics · Electricity and Magnetism

Request a Quote

For pricing, bulk quantities or tender documentation on the Resistance in Series and Parallel, reach our team via Contact Us or submit your requirement through our Tenders page.
