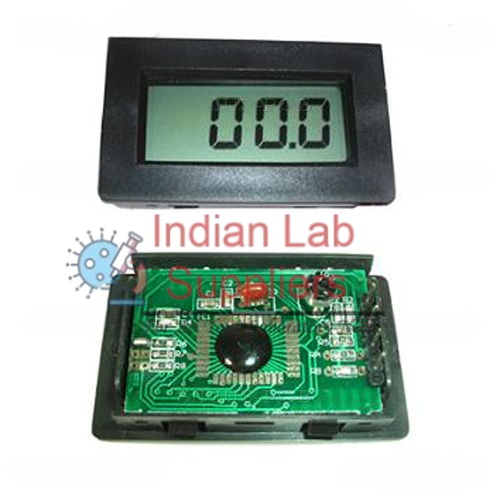

Digital Panel Meter Manufacturer,Supplier and Exporter in India
 (1).png)
Product Code : SCL-LM-14586
Indian Lab Suppliers supplies the Digital Panel Meter (Product ID: 14586) as part of its lab meters range. A digital panel meter shows a voltage, current, frequency or temperature reading as digits on a panel-mounted display.
Quick Answer
Models have 3- or 4-digit LED or LCD displays with 0.56, 0.8 or 1 inch digits. Voltage versions cover 0–20, 0–200 or 0–500 V AC/DC; current versions cover 0–1, 0–5 or 0–10 A through a shunt or current transformer. Accuracy is ±0.5% or better, with overload protection and, on DC models, reverse-polarity protection. The meter runs on 230 V AC, 110 V AC or 24 V DC and fits a 96 × 48, 72 × 72 or 48 × 48 mm cut-out with side clamps. Please confirm the input type, range, display and supply at quotation, and wire it with the power off.
Key Specifications
| Parameter | Detail |
|---|---|
| Display | 3- or 4-digit LED/LCD; 0.56, 0.8 or 1 inch digits |
| Inputs | Voltage, current, frequency or temperature (by model) |
| Voltage ranges | 0–20 / 0–200 / 0–500 V AC/DC |
| Current ranges | 0–1 / 0–5 / 0–10 A with shunt or CT |
| Accuracy | ±0.5% or better |
| Supply | 230 V AC, 110 V AC or 24 V DC |
| Cut-out | 96 × 48, 72 × 72 or 48 × 48 mm |
| Housing | ABS or metal, side clamps |
| Operating temperature | 0–50 °C |
Where This Is Used
Built into power supplies, trainer boards and control panels. Analog alternatives: the Panel Meters (Product ID: 10821) and MR87 Analog Panel Meter (Product ID: 14640). Browse the full Lab Meters range or related Electronics Lab Equipment products.
Frequently Asked Questions
What can it display?
Voltage, current, frequency or temperature, depending on the model.
What cut-out sizes fit?
96 × 48, 72 × 72 or 48 × 48 mm.
How is current measured?
Through a shunt or current transformer.
Related Categories
Lab Meters · Electronics Lab Equipment · Engineering Lab Equipment
Request a Quote
For pricing, bulk quantities or tender documentation on the Digital Panel Meter, reach our team via Contact Us or submit your requirement through our Tenders page.
