Vernier Calliper Stainless Steel Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-PLE-14610

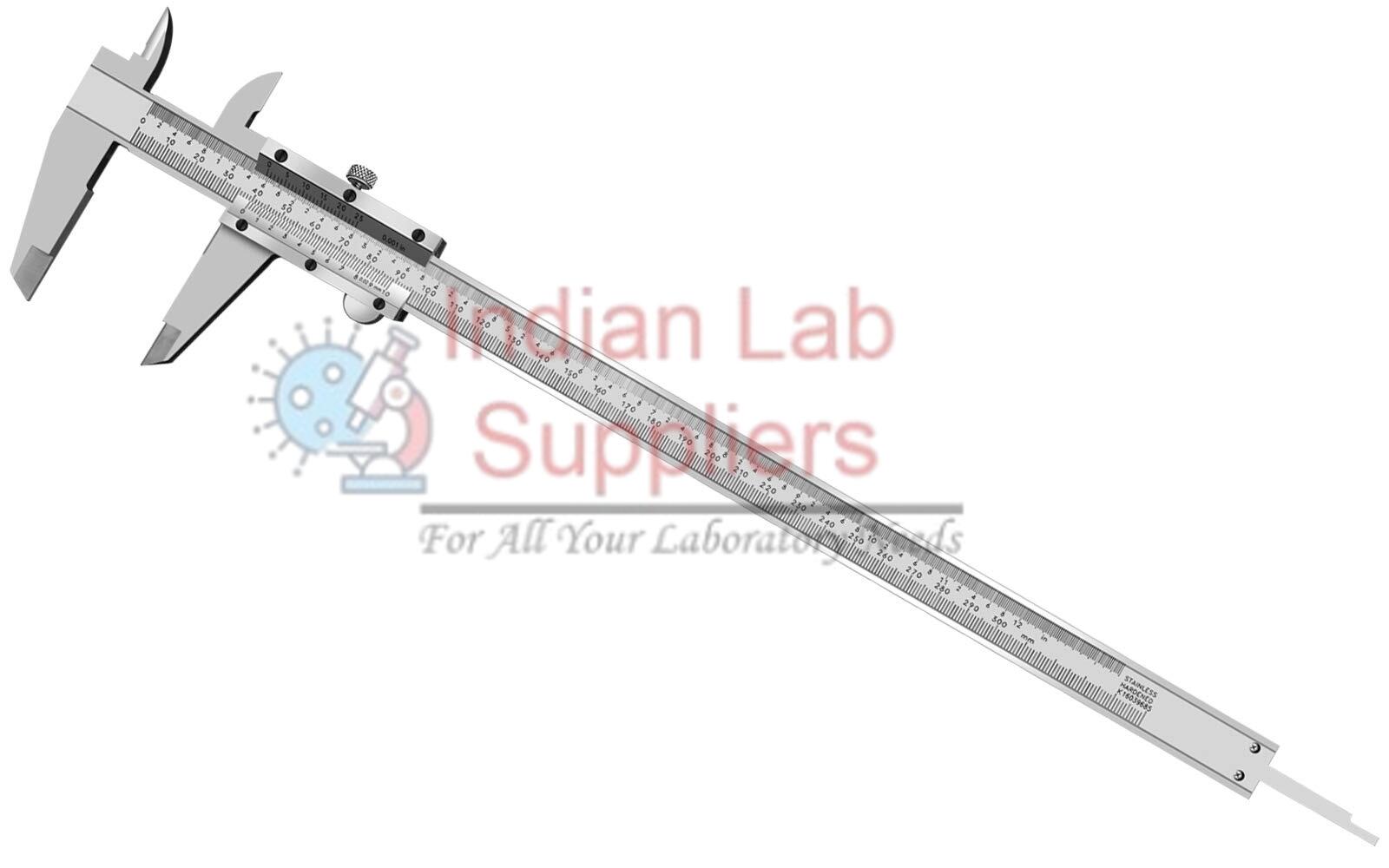

Indian Lab Suppliers supplies the Vernier Calliper Stainless Steel (Product ID: 14610) as part of its physics lab equipment range. It is a stainless steel vernier calliper for measuring external, internal, depth and step dimensions.
Quick Answer
The standard model covers 0 to 150 mm with a least count of 0.02 mm; 200 mm and 300 mm lengths and a 0.05 mm least count are also available. It carries metric and imperial scales with clear graduations, and a satin chrome finish cuts glare. External jaws, internal jaws and a depth rod cover the usual measurements, while a fine adjustment screw and a locking screw hold the reading. Stated accuracy is ±0.02 mm. The least count is the difference between one main-scale division and one vernier division.
Key Specifications
| Parameter | Detail |
|---|---|
| Range | 0–150 mm (200 mm and 300 mm also available) |
| Least count | 0.02 mm (0.05 mm also available) |
| Accuracy | ±0.02 mm |
| Material | Hardened stainless steel |
| Scales | Metric and imperial |
| Jaws | External, internal, depth rod |
| Controls | Fine adjustment screw, locking screw |
| Finish | Satin chrome, anti-glare |
Where This Is Used
Used in physics practicals to measure the diameter of cylinders and spheres and the depth of beakers; see also the Digital Vernier Caliper (Product ID: 14609) and the Vernier Calliper (Product ID: 10134). Browse the full Physics Lab Equipment range or related Properties of Matter products.
Frequently Asked Questions
What is the least count?
0.02 mm as standard; 0.05 mm is also available.
Which lengths are available?
150 mm as standard, plus 200 mm and 300 mm.
Can it measure depth?
Yes, with the depth rod.
Related Categories
Physics Lab Equipment · Properties of Matter · Engineering Lab Equipment
Request a quote: Contact Us or Tenders.
