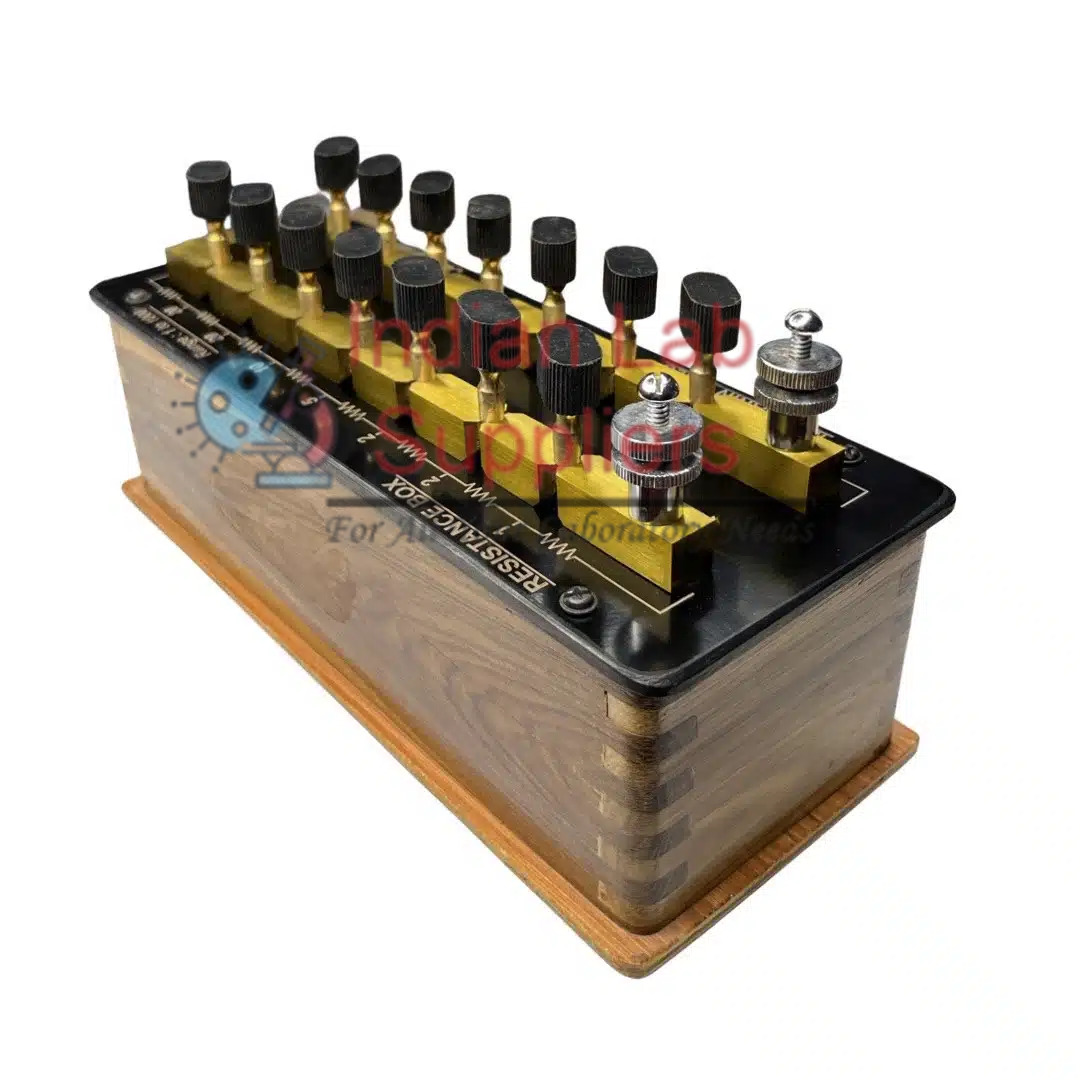

Resistance Box 500 Ohms

Product Code : SCL-EAE-14573

Indian Lab Suppliers supplies the Resistance Box 500 Ohms (Product ID: 14573) as part of its electrical and electronics range. It is a resistance box with a total of 500 Ω, used to put known resistances into a circuit.

Quick Answer

It uses manganin or constantan wire-wound resistors with a low temperature coefficient, and accuracy is ±1% or better. Steps are made from values such as 1, 2, 5, 10, 20, 50 and 100 Ω adding up to 500 Ω. It is made in plug-type or dial-type form with brass or 4 mm terminals, so please confirm the type, step values and terminals at quotation.

Key Specifications

ParameterDetail
Total resistance500 Ω
Resistance wireManganin or constantan
Accuracy±1% or better
StepsCombinations of 1 to 100 Ω values
TypePlug or dial (specify)
BodyBakelite or ABS
TerminalsBrass or 4 mm banana

Where This Is Used

It is used in Ohm’s law, Wheatstone bridge and meter bridge experiments with the Meter Bridge or Wheatstone Bridge With Pencil Jockey (Product ID: 10798). A smaller value is the Resistance Box 50 Ohms (Product ID: 14574). Browse the full Electrical and Electronics range or related Electricity and Magnetism products.

Frequently Asked Questions

What is the maximum resistance?
500 Ω.

How accurate is it?
±1% or better.

What wire is used?
Manganin or constantan.

Related Categories

Electrical and Electronics · Electricity and Magnetism · Physics Lab Equipment

Request a quote: Contact Us or Tenders.
