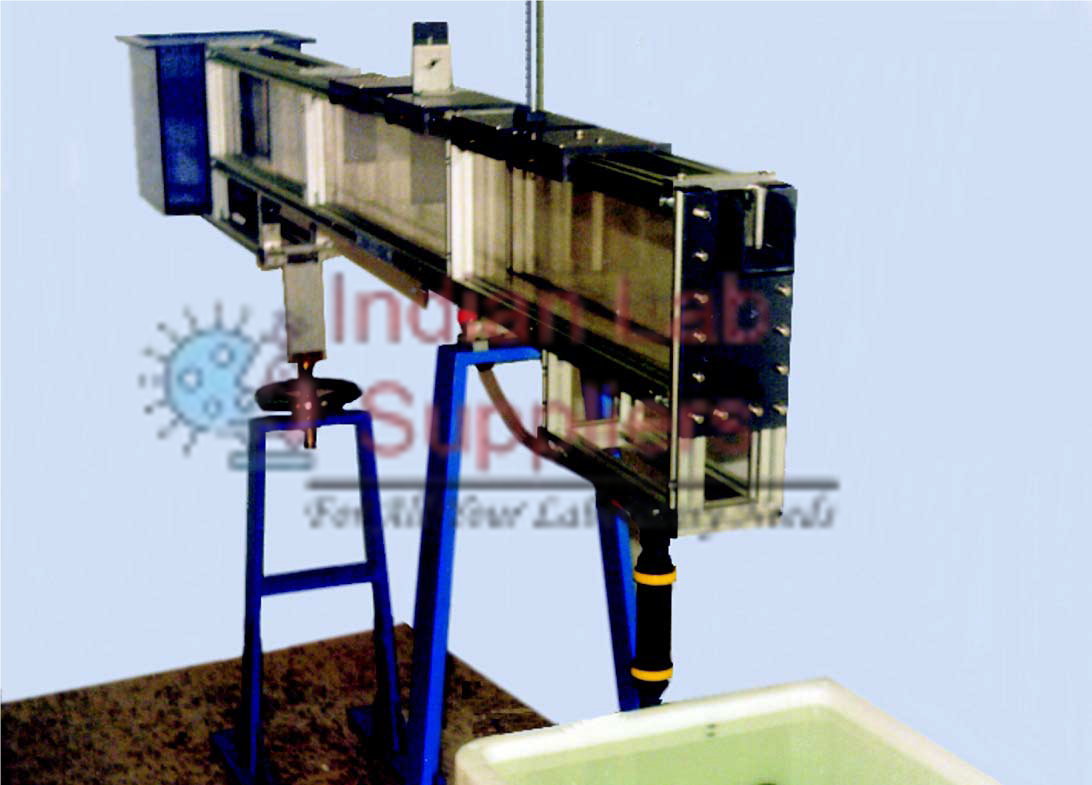

Open Channel Sediment Transport Demonstrator

Product Code : SCL-CELE-14207

Indian Lab Suppliers supplies the Open Channel Sediment Transport Demonstrator (Product ID: 14207) as part of its Civil Engineering Lab Equipment range. It studies bed-load transport in a glass-walled tilting flume.

Quick Answer

The 1600 mm experimental section (86 x 300 mm) has tempered glass walls and tilts from -1% to +3%. A 1.02 kW pump (22.5 m³/h, 13.7 m) circulates water from a 280 L tank through a flow-optimised inlet, and a 49-mesh sediment trap stops sand recirculating. A measuring weir and level gauge give discharge and bed profile, and a sluice gate and rounded bridge pier show scour and siltation; contrast medium can be injected.

Key Specifications

ParameterDetail
Section1600 mm long, 86 x 300 mm
Slope-1% to +3%
WallsTempered glass
Pump1.02 kW, 22.5 m³/h, 13.7 m
Tank280 L
Sediment trap49 mesh
AccessoriesSluice gate, rounded pier, inlet element
MeasurementMeasuring weir, level gauge

Where This Is Used

Related: Sediment Transport Demonstration Channel (Product ID: 14182) and Open Channel Sediment Transport (Product ID: 14076). Browse the full Civil Engineering Lab Equipment range or related Water and Sanitation apparatus.

Frequently Asked Questions

What slope range is available?
-1% to +3%.

What structures are supplied?
A sluice gate and a rounded bridge pier.

How is sand kept in the flume?
By a 49-mesh sediment trap.
