Methods of Flow Measurement Apparatus

Product Code : SCL-CELE-14205

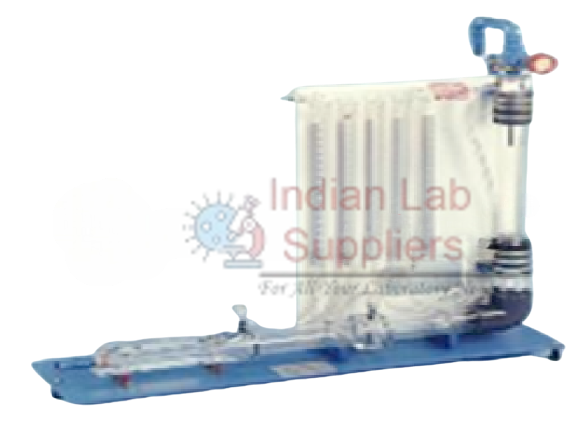

Indian Lab Suppliers supplies the Methods of Flow Measurement Apparatus (Product ID: 14205) as part of its Civil Engineering Lab Equipment range. It compares venturi, orifice, nozzle and rotameter flow measurement in closed pipe.

Quick Answer

The apparatus carries a venturi nozzle (84-338 mm² section, 10.5° inlet and 4° outlet cones), a 14 mm orifice plate, an 18.5 mm measuring nozzle and a rotameter up to 1700 L/h. A 6-tube manometer (390 mm) shows pressure distribution along the devices and a Pitot tube measures total pressure. It is fed from a hydraulic bench or other controlled supply.

Key Specifications

ParameterDetail
Venturi nozzle84-338 mm²; 10.5° inlet, 4° outlet
Orifice14 mm
Measuring nozzle18.5 mm
RotameterUp to 1700 L/h
Manometer6 tubes, 390 mm wc
ProbePitot tube
ServicesWater from bench; drain

Where This Is Used

Use it with a Hydraulic Bench (Product ID: 14019). Related: Methods of Flow Measurement (Product ID: 14060) and Flow Meters Trainer (Product ID: 14158). Browse the full Civil Engineering Lab Equipment range or related Engineering Lab Equipment apparatus.

Frequently Asked Questions

Which devices are compared?
Venturi nozzle, orifice plate, measuring nozzle and rotameter.

What is the rotameter range?
Up to 1700 L/h.

Does it need power?
Not for the basic set-up.
