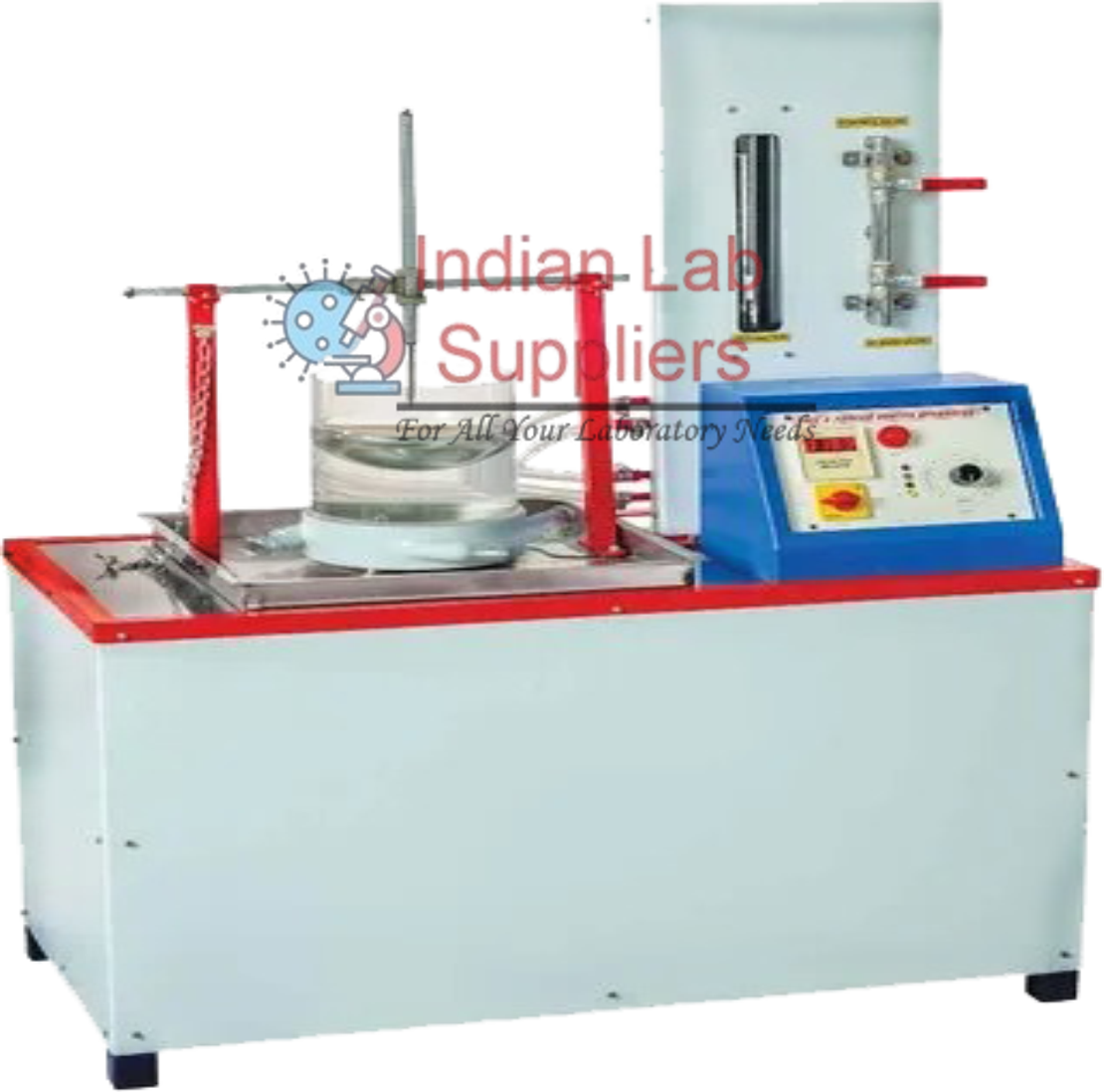

Free and Forced Vortex Apparatus (Hb Accessory)

Product Code : SCL-CELE-14034

Indian Lab Suppliers supplies the Free and Forced Vortex Apparatus (Hb Accessory) (Product ID: 14034) as part of its Civil Engineering Lab Equipment range. It forms a free vortex in a clear cylinder for surface profile measurement.

Quick Answer

Four tangential jets near the base of a clear acrylic cylinder, about 200 mm in diameter and 200 mm high, start the water rotating with negligible torque once steady, forming a free vortex whose surface is hyperbolic. A variable-speed FHP pump sets the jet flow and so the vortex strength. Please confirm the forced vortex fittings and measuring probe at quotation.

Key Specifications

ParameterDetail
VesselClear acrylic, about 200 mm dia x 200 mm high
Vortex generation4 tangential jets
FlowVariable-speed FHP pump

Where This Is Used

Related: Free & Forced Vortex Apparatus (Product ID: 14015), Free Vortex Apparatus (Product ID: 14011) and Free and Forced Vortex Apparatus (Product ID: 14099). Browse the full Civil Engineering Lab Equipment range or related Engineering Lab Equipment apparatus.

Frequently Asked Questions

How is the vortex formed?
By four tangential jets.

What surface shape is expected?
Hyperbolic.

Is a forced vortex drive included?
Please confirm at quotation.

Related Categories

Civil Engineering Lab Equipment · Engineering Lab Equipment · Water and Sanitation

Request a Quote

For pricing, bulk quantities or tender documentation on the Free and Forced Vortex Apparatus (Hb Accessory), reach our team via Contact Us or submit your requirement through our Tenders page.
