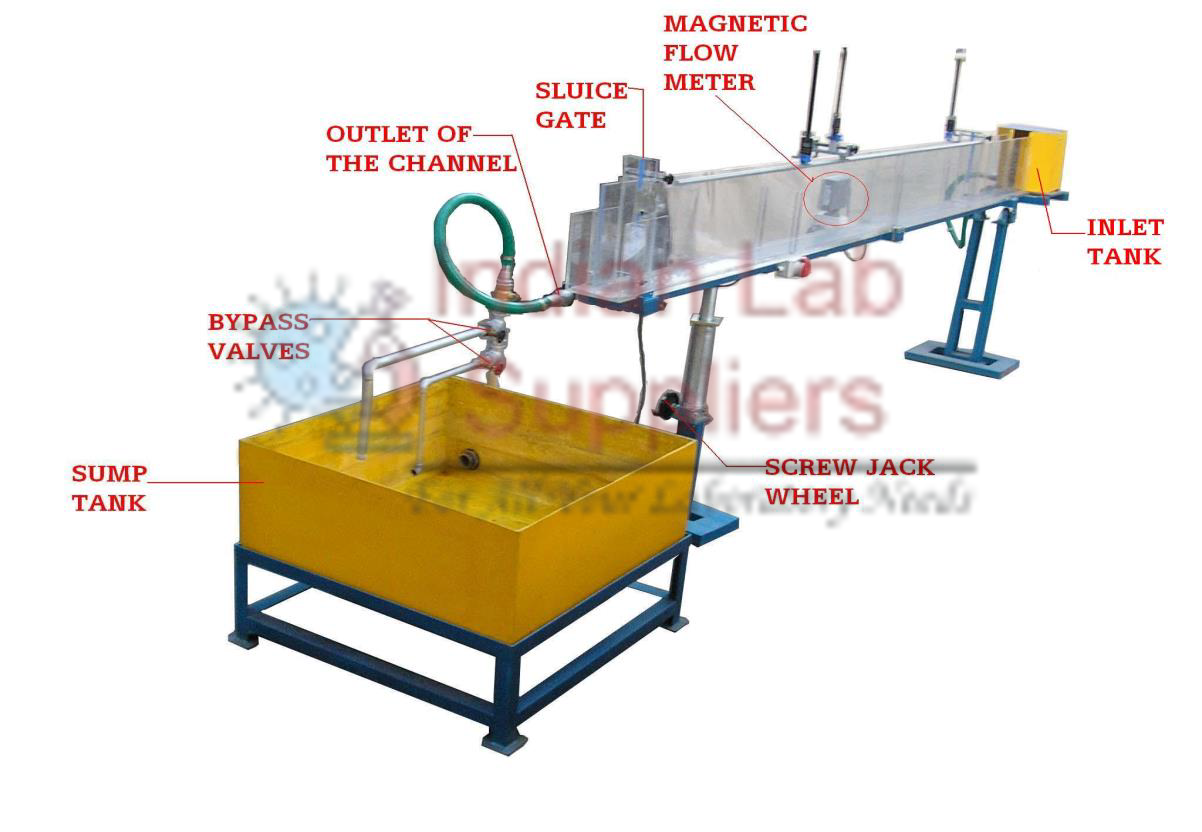

Fluid Mechanics Experiment Plant Manufacturer,Supplier and Exporter in India

Product Code : SCL-CELE-14199

Indian Lab Suppliers supplies the Fluid Mechanics Experiment Plant (Product ID: 14199) as part of its Civil Engineering Lab Equipment range. It is a large-scale piping plant for pump, valve and pipe loss studies.

Quick Answer

Two variable-speed centrifugal pumps (4 kW, 20 m³/h at 34.7 m; and 11 kW, 40 m³/h at 66.5 m; 300-3000 rpm on frequency converters) draw from a 500 L tank (optional 1200 L lower tank). PN10 pipework in DN25 to DN100 includes 3 m smooth and rough DN25/DN20 sections, a DN50 section and a 1.2 m transparent DN50 section with 10 points and ink injection. Control valves of Kvs 10, 40 and 100, an orifice meter and pressure, differential pressure and flow sensors feed a USB console.

Key Specifications

Parameter	Detail
Pumps	4 kW (20 m³/h, 34.7 m) and 11 kW (40 m³/h, 66.5 m); 300-3000 rpm
Pipework	PN10, DN25 to DN100
Test sections	DN25/DN20 3 m smooth and rough; DN50 3 m; transparent DN50 1.2 m, 10 points
Valves	Kvs 10, 2 x Kvs 40, Kvs 100
Tank	500 L (1200 L lower tank optional)
Sensors	8 x 10 bar; 2 x -1 to 0.6 bar; 2 x 0-1.6 bar differential; flow 0-50 and 0-100 m³/h
Data	USB console and software

Where This Is Used

Students determine Kv values, NPSH, pump curves and pipe losses at near-industrial scale. Related: Pumps Comparison Apparatus (Product ID: 14197) and Fluid Friction Apparatus (Product ID: 14018). Browse the full Civil Engineering Lab Equipment range or related Engineering Lab Equipment apparatus.
