Combined Flow Reactor Manufacturer,Supplier and Exporter in India

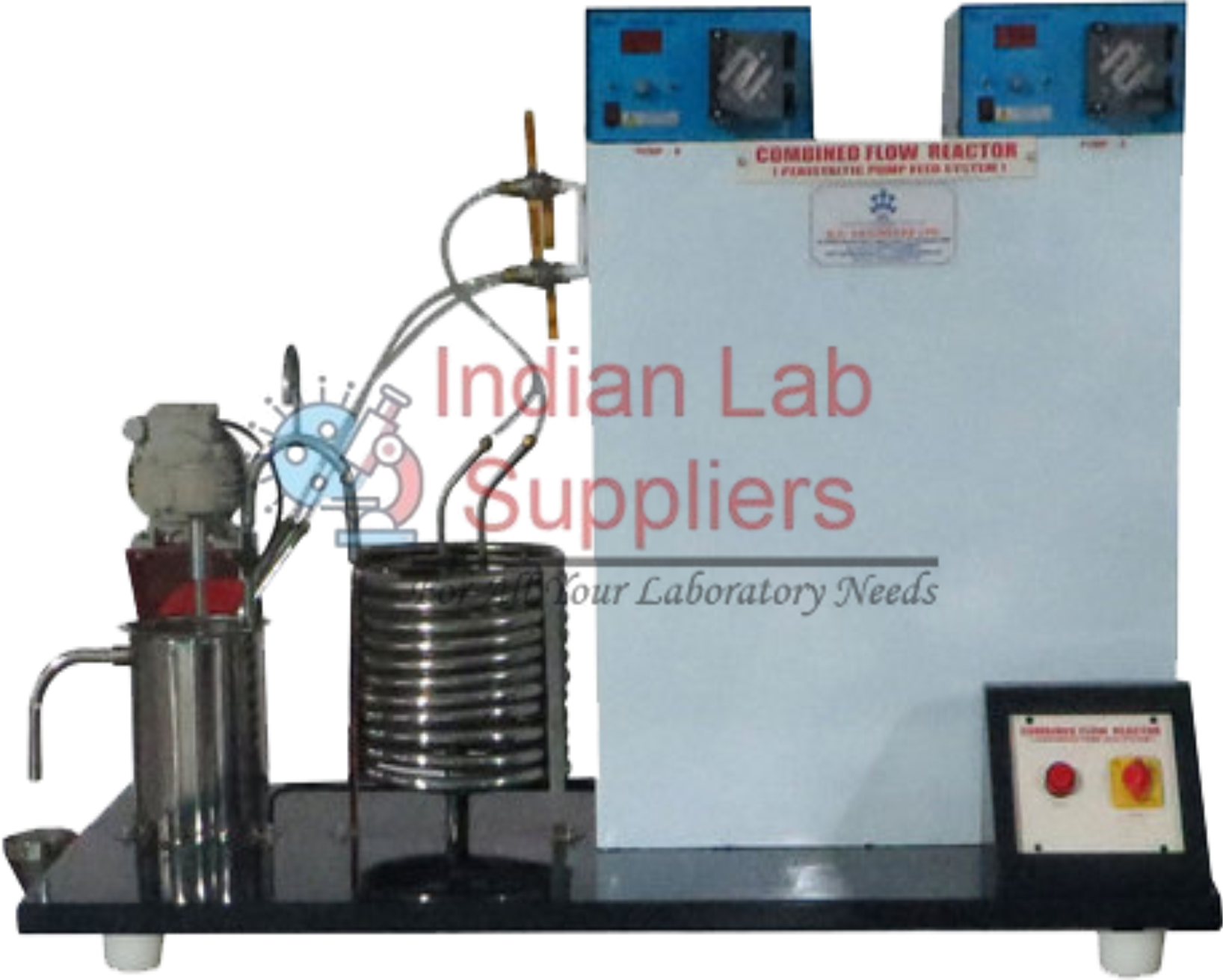

Combined Flow Reactor

Product Code : SCL-CLE-13396

Introduction: This set-up is used to study a non-catalytic homogeneous second order liquid phase reaction under ambient condition in a combined reactor. It consists of two reactors connected in series, one is plug flow reactor and another mixed flow reactor. In an ideal Plug Flow Reactor (PFTR) there is no mixing in the direction of flow and complete mixing perpendicular to direction of flow.

Specifications:

  1. 1st Reactor: Material Stainless Steel, Capacity 0.7 Ltrs. (approx)
  2. 2nd Reactor: Material Stainless Steel, Capacity 2 Ltrs (Approx).
  3. Stirrer for MFR: Stainless Steel Impeller and shaft coupled with FHP motor Remi/Eltek make.
  4. Feed Tank (2Nos.): Material Stainless Steel, Capacity - 20 Ltrs.
  5. Feed circulation: By compressed air.
  6. Flow Measurement: Rotameter 2 Nos. (one each for Reactants) Eureka/IEPL make.
  7. Piping : Stainless Steel and PVC Pressure Regulator: 0-2 Kg/cm2 Janetics/Shavo Norgen make.
  8. Pressure Gauge: Bourdon type 0-2 Kg/cm2 Mass/Pricol make.
  9. The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure.
