Home » Our Product » Lab Meters » Analog Voltmeter Panel Type 500V AC DC

Analog Voltmeter Panel Type 500V AC DC Manufacturer,Supplier and Exporter in India

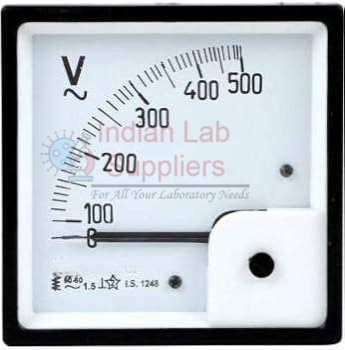

Analog Voltmeter Panel Type 500V AC DC

Product Code : SCL-LM-14565

Indian Lab Suppliers supplies the Analog Voltmeter Panel Type 500V AC DC (Product ID: 14565) as part of its lab meters range. This flush-mounting analog panel voltmeter reads up to 500 V.

Quick Answer

The scale runs 0–500 V with a 72 × 72 mm or 96 × 96 mm dial, black-on-white or white-on-black, behind a clear window with a zero adjuster and insulated terminals. Accuracy class is ±1.5% or ±2.5%. A moving-iron movement reads both AC and DC; a moving-coil movement reads DC only, so please confirm the movement for your supply at quotation. 500 V is dangerous: wire the meter only with the supply isolated.

Key Specifications

Parameter	Detail
Range	0–500 V
Movement	Moving iron (AC/DC) or moving coil (DC)
Accuracy class	±1.5% or ±2.5%
Dial size	72 × 72 mm or 96 × 96 mm
Scale	Black-on-white or white-on-black
Mounting	Flush panel
Case	ABS plastic or metal
Operating temperature	0–50 °C

Where This Is Used

Used on control panels, transformer and generator benches and workshop training boards. Matching meters: the Analog Ammeter Panel Type 50A AC DC (Product ID: 14564) and Analog Frequency Meter (Product ID: 14551). Browse the full Lab Meters range or related Electrical and Electronics products.

Frequently Asked Questions

What is the full-scale voltage?
500 V.

Which dial sizes are offered?
72 × 72 mm and 96 × 96 mm.

Does it read AC and DC?
A moving-iron movement reads both; a moving-coil version is DC only.

Related Categories

Lab Meters · Electrical and Electronics · Engineering Lab Equipment

Request a quote: Contact Us or Tenders.
