PNP Transistor Unit Manufacturer,Supplier and Exporter in India
.png)
Product Code : SCL-EAE-14622

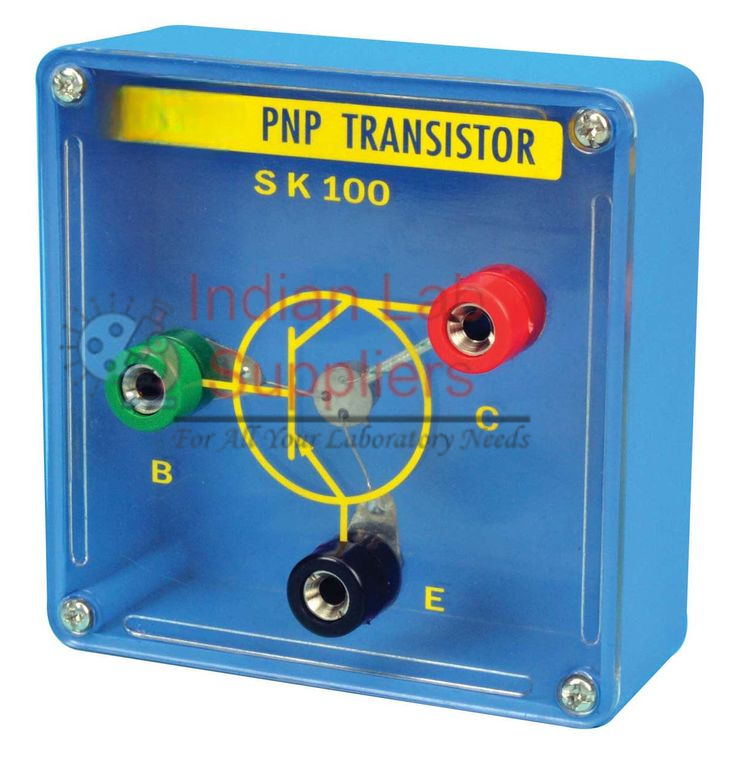

Indian Lab Suppliers supplies the PNP Transistor Unit (Product ID: 14622) as part of its electrical and electronics range. It is a PNP bipolar transistor mounted on a board with labelled emitter, base and collector terminals for circuit experiments.
Quick Answer
A small-signal PNP transistor (BC558, 2N3906 or equivalent) is fixed to an insulated wooden or acrylic board, with E, B and C brought out to brass binding posts. Students can wire it in common-emitter, common-base or common-collector form and trace cut-off, active and saturation regions. In a PNP device the emitter is kept more positive than the base and collector. It is meant for low-voltage laboratory circuits.
Key Specifications
| Parameter | Detail |
|---|---|
| Transistor | PNP BJT, BC558 / 2N3906 or equivalent |
| Board | Insulated wood or acrylic |
| Terminals | Brass binding posts, E, B, C marked |
| Configurations | CE, CB, CC |
| Supply | Low voltage |
Where This Is Used
It is used for transistor characteristics, switching and simple amplifier practicals. Pair it with the NPN Transistor Unit (Product ID: 14623) or use the Transistor Characteristics Apparatus (Product ID: 14658). Browse the full Electrical and Electronics range or related Electronics Lab Equipment products.
Frequently Asked Questions
Which transistor is fitted?
A PNP BJT such as BC558 or 2N3906, or equivalent.
Which configurations can be built?
Common emitter, common base and common collector.
How is the polarity marked?
E, B and C are labelled on the board.
Related Categories
Electrical and Electronics · Electronics Lab Equipment · Physics Lab Equipment
Request a Quote
For pricing, bulk quantities or tender documentation on the PNP Transistor Unit, reach our team via Contact Us or submit your requirement through our Tenders page.
