Dynamo Model AC DC Manufacturer,Supplier and Exporter in India

Product Code : SCL-EAE-14547

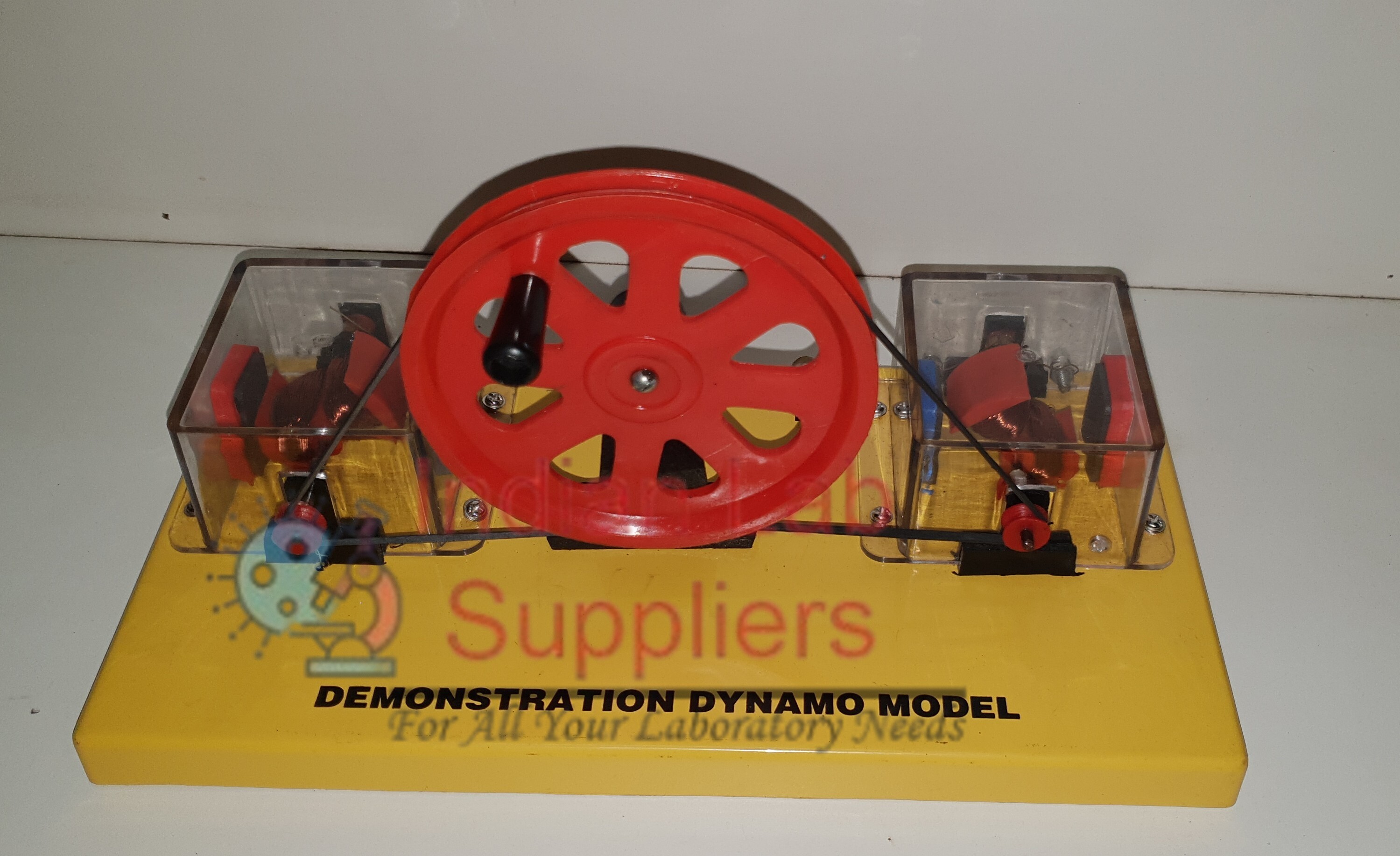

The Dynamo Model AC/DC is a hands-on educational apparatus designed to demonstrate the fundamental working principle of electromagnetic induction. It shows how mechanical rotation of a coil in a magnetic field generates electric current, and how the output can be switched between AC (Alternating Current) and DC (Direct Current).

Ideal for Physics Labs, STEM education, School demonstrations, and Engineering basics, this model helps students visually understand concepts like induced EMF, rectification, magnetic fields, and coil rotation.

Key Features

Dual Output: Demonstrates generation of AC and DC from a single unit.
Visible Internal Mechanism: Transparent or open-body design lets students observe coil rotation and magnet interaction.
Hand-Driven Operation: No external power required—features a hand crank for manual rotation.
Robust Construction: Durable wooden/metal base suitable for repeated classroom use.
Inbuilt Rectifier: Simple mechanism to convert AC to DC for clear comparison.
Safe Demonstration: Low-voltage educational model designed for student handling.
Color-Coded Terminals: Simplifies identifying AC vs. DC output for experiments.
Smooth Rotation Mechanism: Ensures stable output for clear readings.

Technical Specifications

Specification	Details
Output Type	AC & DC selectable
Operation	Manual rotation via hand crank
Coil Type	Copper wound coil
Magnet Type	Permanent magnet
Base Material	Wooden / Metal
Output Terminals	2 terminals each for AC & DC
Max Voltage Output	3–12 V (depending on rotation speed)
Drive Mechanism	Gear-assisted hand wheel
Safety	Low-voltage educational model
