Ohm's Law Apparatus (with Power Supply) Manufacturer,Supplier and Exporter in India
 (1).jpg)
Product Code : SCL-EELE-14530

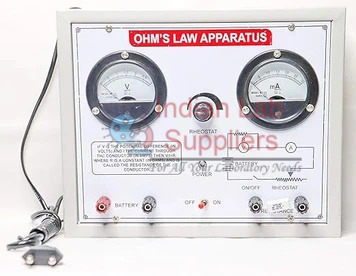

Indian Lab Suppliers supplies the Ohm's Law Apparatus (with Power Supply) (Product ID: 14530) as part of its electronics engineering lab equipment range. It is a complete Ohm's law experiment board with its own regulated DC supply, variable resistor and meters.
Quick Answer
The pre-assembled circuit includes a regulated 0–12 V DC supply, a variable resistor or rheostat, a 0–12 V voltmeter and an ammeter of 0–500 mA or as required; the meters are analog or digital. It runs from 230 V or 110 V AC mains and has overload and short-circuit protection, insulated connectors and banana terminals or fixed test points. Students vary the voltage, record the current and plot V against I, whose straight-line slope gives the resistance. Please confirm the meter type and ammeter range at quotation.
Key Specifications
| Parameter | Detail |
|---|---|
| Supply output | 0–12 V DC regulated, built-in |
| Voltmeter | 0–12 V |
| Ammeter | 0–500 mA or as required |
| Meter type | Analog or digital |
| Resistance element | Variable resistor / rheostat |
| Protection | Overload / short-circuit |
| Connections | Banana terminals or fixed test points |
| Mains input | 230 V or 110 V AC (as required) |
Where This Is Used
Used in physics and basic electrical labs for Ohm's law verification. The Digital Ohm's Law Apparatus (Product ID: 14529) has digital meters as standard, and the Ohm's Law Apparatus (Product ID: 14531) is for use with an external supply. Browse the full Electronics Engineering Lab Equipment range or related Electricity and Magnetism products.
Frequently Asked Questions
Is a power supply included?
Yes, a built-in regulated 0–12 V DC supply.
What meters are fitted?
A 0–12 V voltmeter and an ammeter of 0–500 mA or as required, analog or digital.
What mains voltage does it need?
230 V or 110 V AC, as required.
Related Categories
Electronics Engineering Lab Equipment · Electricity and Magnetism · Physics Lab Equipment
Request a Quote
For pricing, bulk quantities or tender documentation on the Ohm's Law Apparatus (with Power Supply), reach our team via Contact Us or submit your requirement through our Tenders page.
