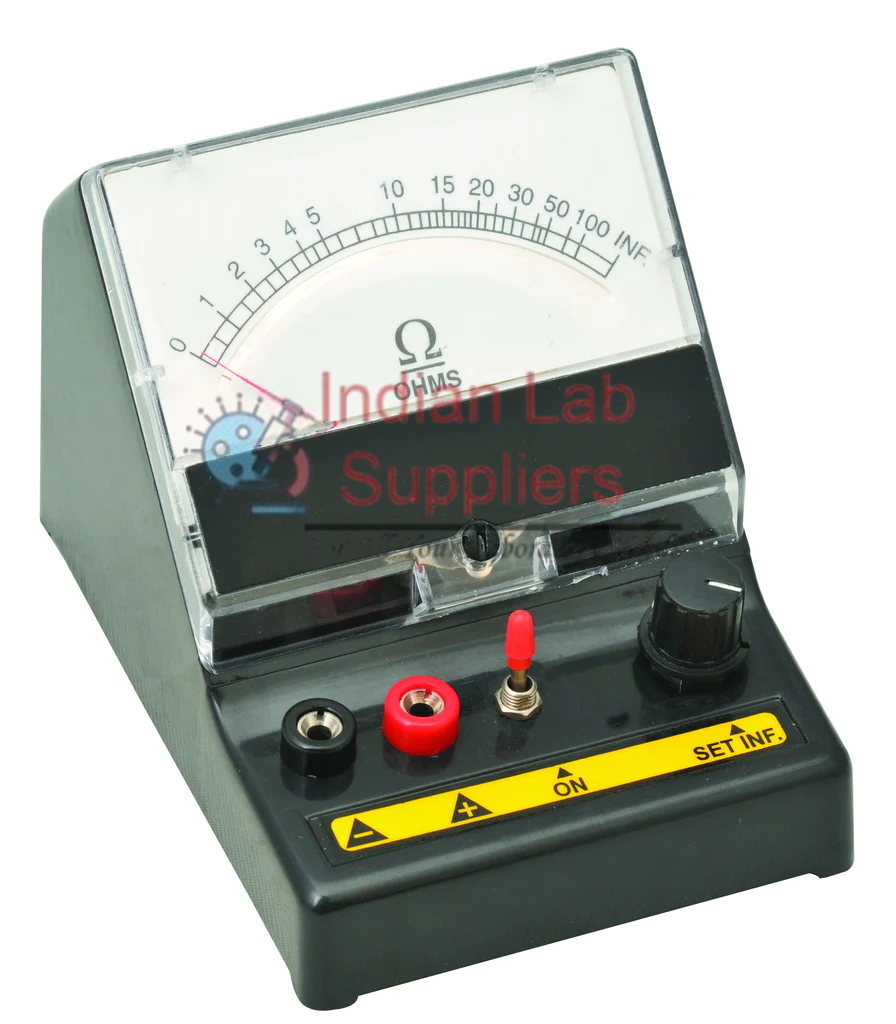

Ohmmeter Series Type Manufacturer,Supplier and Exporter in India
.png)
Product Code : SCL-EAE-14656
The Ohmmeter (Series Type) is a fundamental electrical measuring instrument used to determine unknown resistance values using a series circuit arrangement.
It is widely used in physics labs, electronics labs, ITI, diploma, B.Sc, and engineering courses to teach students the principles of Ohm’s Law, meter sensitivity, series resistance measurement, and the functioning of analog measuring systems.
This educational model is built with a clear scale, user-friendly terminals, and a durable casing— ideal for repeated student use.
Key Features
Accurate measurement of resistance using series configuration
Clear analog scale for easy reading
High-sensitivity movement for precise results
4 mm terminals for safe and quick connections
Sturdy educational-grade construction
Zero adjustment knob for calibration
Ideal for foundational electrical experiments
Technical Specifications
- Meter Type: Analog moving-coil
- Measuring Range: Depends on model (typically from a few ohms to megaohms)
- Scale: Clearly marked resistance scale
- Internal Battery: 1.5V / 3V / 9V depending on range
- Accuracy: ±2% to ±5% (educational grade)
- Terminals: 4 mm banana sockets
- Zero Adjustment: Front panel rotary adjustment
- Body Material: ABS or metal case (lab-grade)
- Protection:
- Fuse protection
- Overload protection
Applications
- Measurement of unknown resistances
- Demonstration of Ohm’s Law fundamentals
- Understanding series-type ohmmeter construction
- Studying meter sensitivity and calibration
- Use in school, college, ITI, diploma, and engineering physics experiments
- Basic troubleshooting and circuit testing
Why Choose Indian Lab Supplier for This Product?
Our ohmmeters are designed with precision movement and properly calibrated scales for consistent performance.
Perfect for daily student handling—durable, safe, and long-lasting.
More economical than imported meters while maintaining high performance.
Batteries, terminals, fuses, and movements are easily available across India.
Meets curriculum requirements for:
- CBSE / ICSE
- Polytechnic & ITI
- B.Sc Physics
- Engineering labs
We offer models with:
- Single range
- Multi-range
- High-resistance measurement
