Hybrid System Engine Transmission System Anatomy Display Stand Manufacturer,Supplier and Exporter in India
.png)
Product Code : SCL-EELE-13509

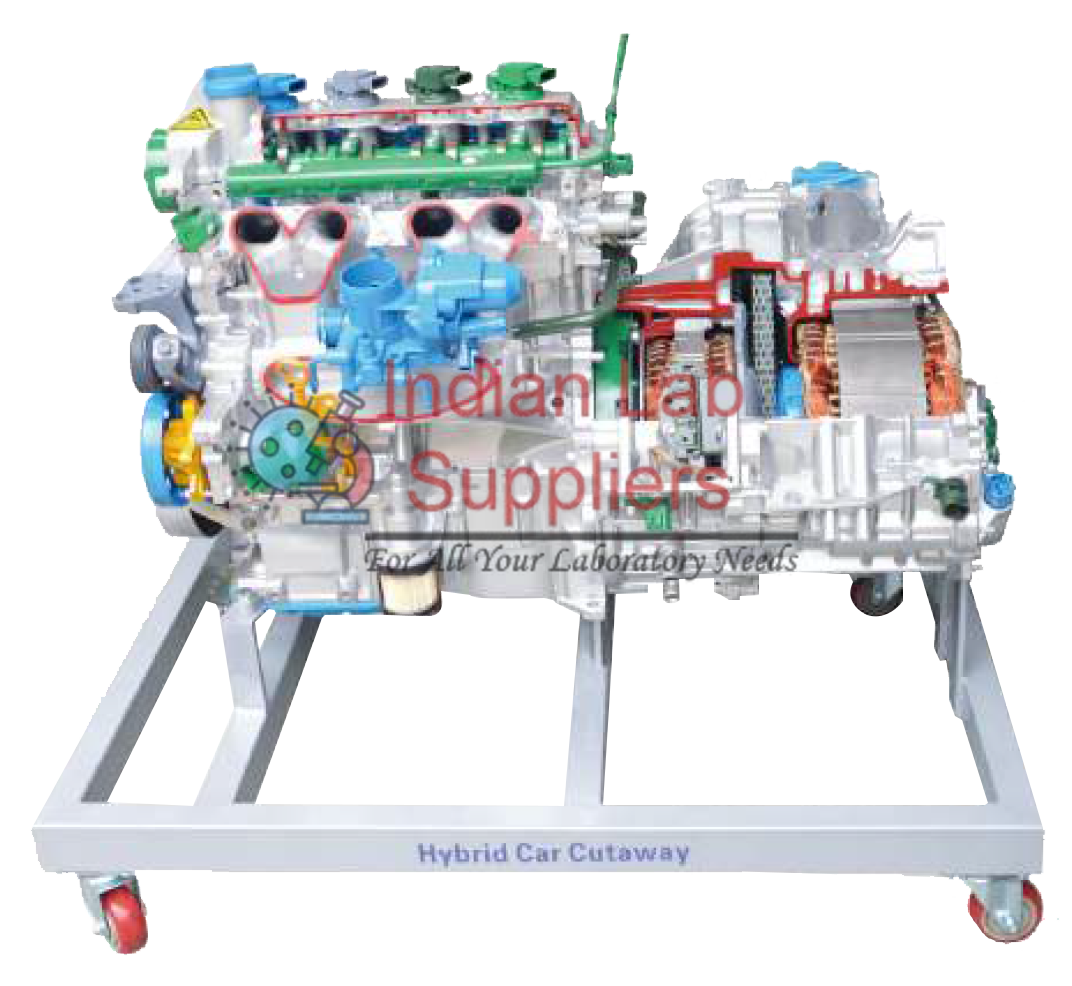

Indian Lab Suppliers supplies the Hybrid System Engine Transmission System Anatomy Display Stand (Product ID: 13509) as part of its electronics engineering lab equipment range. It is a sectioned hybrid power system (engine, generator and motor) that shows the internal parts moving through six driving conditions.
Quick Answer
A refurbished hybrid assembly is cut away and the sections are painted in different colours to show the internal and external structure. A three-phase geared induction motor turns the engine crankshaft and motor drive shaft slowly, and an MCU control system steps through six conditions: starting, low-speed driving, normal driving, full-speed driving, deceleration and parking. Please confirm the supply required for the three-phase drive motor at quotation. Keep fingers out of the cut-away sections while the mechanism turns.
Key Specifications
| Parameter | Detail |
|---|---|
| Assembly | Refurbished hybrid system: engine, generator, motor |
| Sectioning | Mechanical cut-aways, colour-painted |
| Drive | Three-phase geared induction motor, low speed |
| Control | MCU, six simulated working conditions |
| Conditions | Starting, low-speed, normal, full-speed, deceleration, parking |
Where This Is Used
Used in automotive and hybrid vehicle courses. Related: Automotive Hybrid Engine Trainer (Product ID: 13508) and Drive Motor Dissection Display Stand (Product ID: 13524). Browse the full Electronics Engineering Lab Equipment range or related Engineering Lab Equipment products.
Why Buy from Indian Lab Suppliers
Indian Lab Suppliers is an India-based laboratory equipment manufacturer and exporter supplying this hybrid system cutaway display stand alongside its wider electronics lab equipment range, with documentation such as a Certificate of Origin available on request for institutional and export orders.
Frequently Asked Questions
Which operating conditions are shown?
Starting, low-speed, normal, full-speed, deceleration and parking.
What moves the parts?
A three-phase geared induction motor turning the crankshaft and motor shaft slowly.
Is the assembly new?
It is a refurbished hybrid system.
Related Categories
Electronics Engineering Lab Equipment · Engineering Lab Equipment · Electronics Lab Equipment
Request a Quote
For pricing, bulk quantities or tender documentation on the Hybrid System Engine Transmission System Anatomy Display Stand, reach our team via Contact Us or submit your requirement through our Tenders page.
