FET Characteristics Apparatus Manufacturer,Supplier and Exporter in India
.png)
Product Code : SCL-EAE-14654

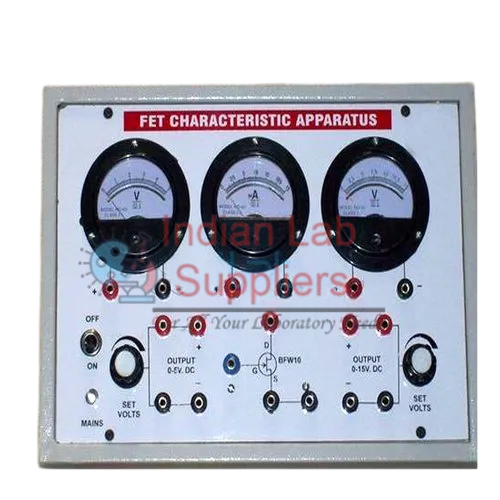

The FET Characteristics Apparatus is a comprehensive laboratory instrument designed to study the drain and transfer characteristics of Field Effect Transistors (FETs) such as JFETs or MOSFETs.
This apparatus helps students understand how FETs function as voltage-controlled devices, their behavior in different biasing conditions, and their importance in modern electronics.
Ideal for physics labs, electronics labs, ITI, diploma, B.Sc, and engineering courses, this apparatus includes built-in regulated power supplies, meters, and sockets for easy and safe experimentation.
Key Features
Complete setup for JFET/MOSFET characteristic study
Built-in variable DC power supplies
Digital/Analog meters for accurate measurements
Study of both drain and transfer characteristics
4 mm safety sockets for easy wiring
Clear circuit diagram printed on the panel
Stable and regulated output with short-circuit protection
Robust construction suitable for daily student use
Technical Specifications
- FET Provided:
- JFET (e.g., J201 / BF245)
- MOSFET (optional model)
- Power Supplies:
- Drain supply: 0–30V DC
- Gate supply: 0–5V or 0–10V DC
- Meters:
- Voltmeter: 0–30V
- Ammeter: 0–50 mA / 0–100 mA
- Load Resistors: Mounted on the panel
- Connections: 4 mm banana sockets
- Panel Type: Laminated layout with printed circuit diagram
- Safety Features:
- Overload protection
- Fuse protection
- Body Material: ABS or metal case (educational-grade)
Applications
- Study of drain (Id–Vds) characteristics
- Study of transfer (Id–Vgs) characteristics
- Understanding FET as a voltage-controlled device
- Learning JFET/MOSFET operation principles
- Determining transconductance (gm)
- Semiconductor device physics experiments
- Ideal for ITI, diploma, B.Sc, and engineering practicals
Why Choose Indian Lab Supplier for This Product?
Designed to meet the exact requirements of CBSE, ICSE, Polytechnic, B.Sc, and Engineering electronics practicals.
Strong build quality ensures the apparatus can withstand continuous classroom use.
More cost-effective than imported units without compromising performance.
FETs, resistors, meters, and power modules are easily available for future servicing.
Options available for:
- JFET-only models
- MOSFET-only models
- Digital/analog meter combinations
Used in schools, colleges, ITIs, engineering institutes, and government training centers across India.
