Product Code : SCL-CELE-14175
Overview

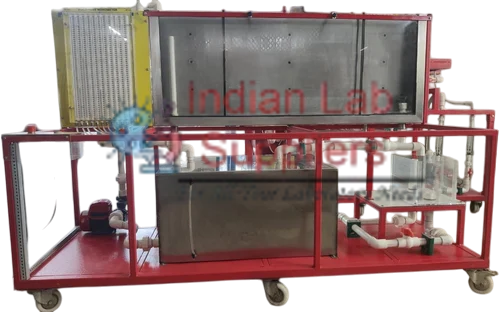

The Drainage and Seepage Tank Demonstrator
is a self-contained training unit designed to study and visualize flow
through permeable media such as soils and sands. It allows comprehensive
investigation of drainage and seepage behavior, flow patterns,
and uplift pressure distributions under various hydraulic conditions.
The apparatus features a transparent
toughened glass front panel for clear observation of flow lines and seepage
paths, supported by a non-corrosive aluminum rear panel that allows easy
insertion of pressure tapping points. Two adjustable overflow outlets maintain
a constant water level during operation. A dye injection system enables
detailed visualization of flow paths and potential seepage zones.
Water is circulated from an integrated sump
tank via a centrifugal pump with flow control valves for precise
adjustment. The system is supported by an optional DAQ interface and
LabView-based “Sci-Cal” software for data acquisition and analysis.
A comprehensive Operation & Maintenance
Manual is provided with the unit.
Key
Features
- Self-contained benchtop unit for
studying flow through permeable media.
- Toughened glass front panel for
durable, high-visibility observation.
- Non-corrosive aluminum construction ensures long service life.
- Adjustable overflow weirs for
maintaining constant water levels.
- Integrated dye injection system for
visualization of flow patterns.
- Centrifugal pump and sump system for
closed-loop water circulation.
- Includes multiple accessories for
different drainage and seepage experiments.
- Optional DAQ and LabView software for
computer-based data collection and analysis.
Technical
Specifications
|
Component |
Specification |
|
Working Section |
1500 mm × 100 mm × 600 mm |
|
Tank Construction |
Toughened glass front, aluminum back panel |
|
Side Supports |
Designed for full interior access |
|
Overflow Control |
Two adjustable overflows at each end |
|
Circulation System |
Centrifugal pump, sump tank, starter, and control valve |
|
Dye Injection System |
Provided for flowline visualization |
|
Included Accessories |
Foundation pressure plate, straight permeable membrane, curved
permeable membrane, lateral pressure plate, tile drain |
|
Overall Dimensions |
Length: 1.60 m × Width: 0.60 m × Height: 1.45 m |
Optional
Accessories
- DAQ Computer Interface & LabView Software
- ‘Sci-Cal’ Computer Control Software & Interface
Experimental
Capabilities
- Visualization of flow lines and equipotential lines in
permeable media.
- Determination of seepage rates and flow nets under
steady-state conditions.
- Verification of Darcy’s Law for flow through porous media.
- Study of uplift pressure distribution beneath hydraulic
structures.
- Analysis of seepage under sheet pile walls and through
earth dams.
- Investigation of subsoil drainage for controlling uplift and
lateral thrust.
- Demonstration of quicksand formation and stability of
earth dams.
- Simulation of excavation site drainage using wells.
Required
Services
|
Service |
Specification |
|
Electrical Supply |
230 V AC, Single Phase, Earthed |
