Digital Transistor Characteristics Apparatus Manufacturer,Supplier and Exporter in India
.png)
Product Code : SCL-EAE-14660

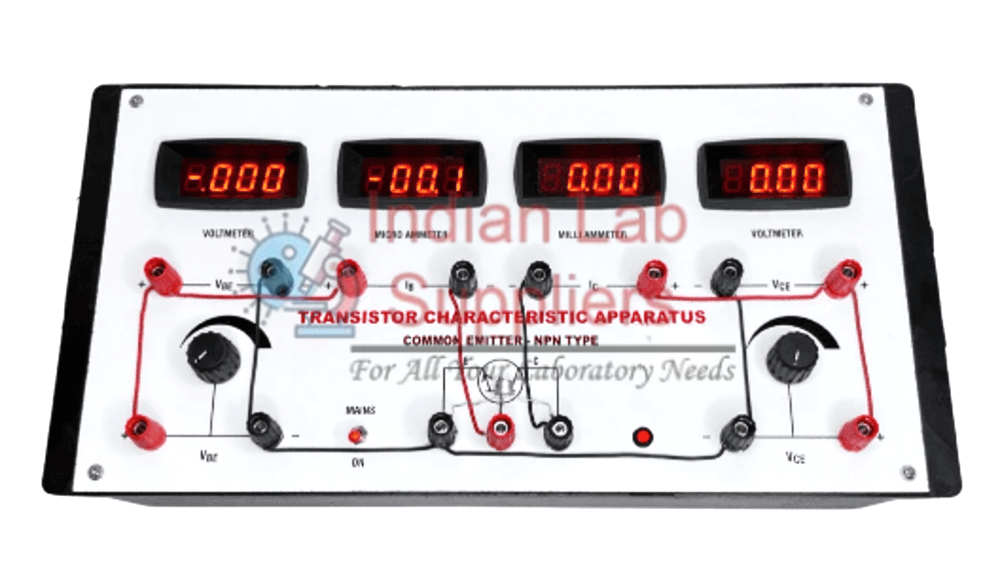

The Digital Transistor Characteristics Apparatus is a modern, high-accuracy teaching instrument designed to study the input, output, and transfer characteristics of NPN and PNP transistors in CE (Common Emitter) and CB (Common Base) configurations.
It uses digital meters for precise measurement, making it ideal for engineering, diploma, physics, and electronics laboratories.
This apparatus provides a complete setup for plotting transistor V–I characteristics with built-in regulated DC power supplies, digital voltmeters, and digital ammeters.
The front panel includes clear circuit diagrams, terminals, and smooth variable controls, enabling students to perform experiments easily and accurately.
It is available in socket type, terminal type, and Gujarat/ITI type versions.
Key Features
- Digital V/A meters for accurate measurement
- Supports NPN & PNP transistors
- Study of CE & CB configurations
- Built-in smooth variable DC power supply
- High-quality transistor sockets for easy replacement
- Short-circuit & overload protection
- Durable powder-coated metal body
- Clear, student-friendly circuit diagram
- Fine & coarse control potentiometers
- Ideal for electronics training and semiconductor physics
Technical Specifications
|
Parameter |
Specification |
|
Transistor Type |
NPN / PNP (BC547, BC557 or as required) |
|
Configurations |
CE & CB |
|
Power Supply |
0–30V DC regulated |
|
Digital Voltmeter |
0–30V DC (3½ digit display) |
|
Digital Ammeter |
0–200mA / 0–20mA options |
|
Base Current Control |
Variable potentiometer |
|
Collector Supply |
Smooth Rotary / Knob control |
|
Bias Modes |
Forward & Reverse |
|
Indicators |
Power ON LED |
|
Protection |
Overload, short-circuit |
|
Body |
Powder-coated MS cabinet |
|
Connections |
4mm terminals / Socket type |
Applications
Used for detailed study of:
- Input characteristics (IB vs VBE)
- Output characteristics (IC vs VCE)
- Transfer characteristics (IC vs IB)
- Transistor biasing
- Semiconductor device physics
- Current amplification (β)
Why Choose Indian Lab Supplier?
Precise digital meters ensure stable, repeatable experimental results.
Made with a powder-coated body and quality components for long life in student environments.
Available in socket type, Gujarat type, and engineering college configurations.
Best prices for bulk institutional and tender orders.
Used by hundreds of engineering colleges, ITIs, schools, and technical institutes.
Includes technical assistance, spare parts, and maintenance guidance.
