6 in 1 Logic Gate Apparatus Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-EELE-14528

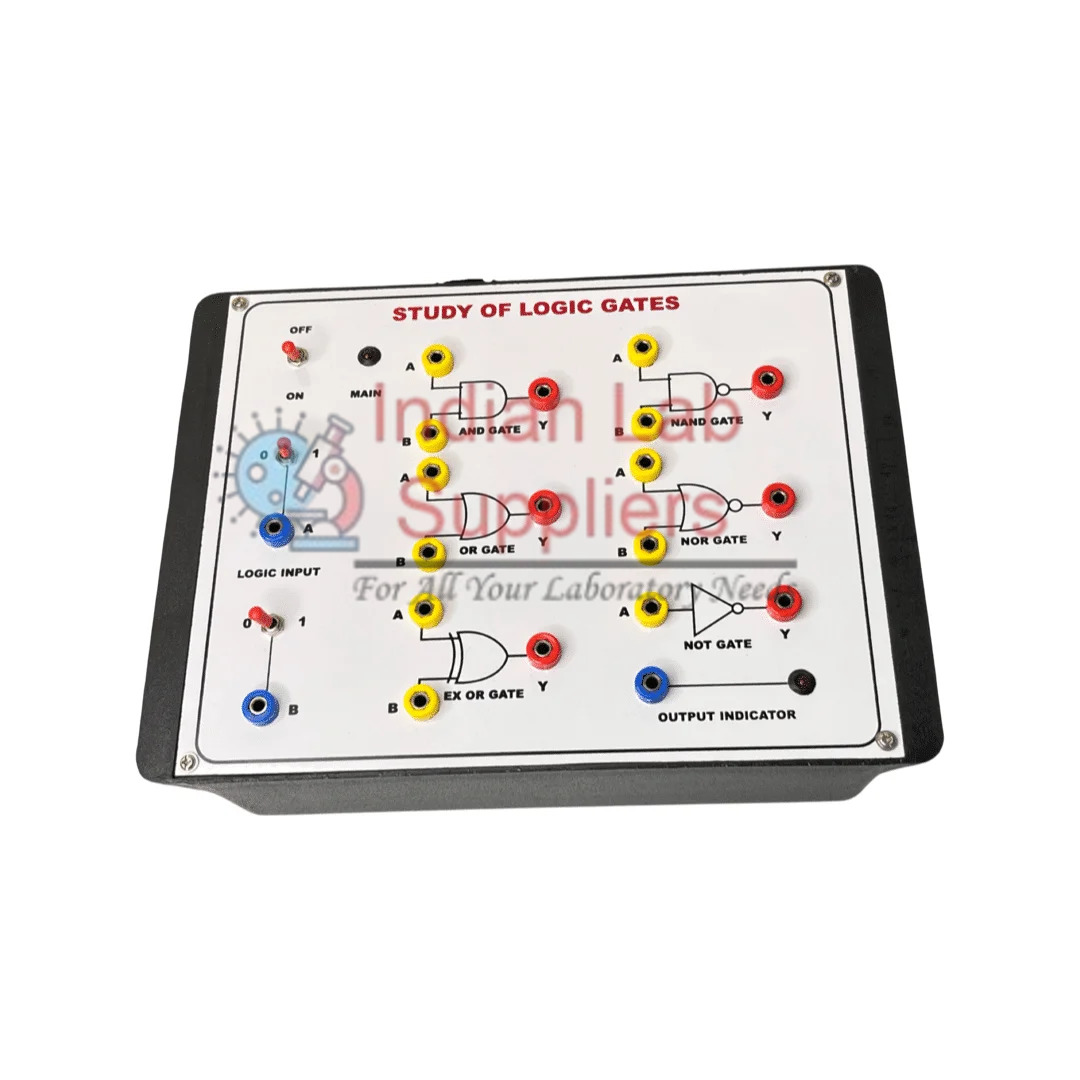

Indian Lab Suppliers supplies the 6 in 1 Logic Gate Apparatus (Product ID: 14528) as part of its electronics engineering lab equipment range. It is a compact trainer that demonstrates the six basic logic gates, AND, OR, NOT, NAND, NOR and XOR, on one board.
Quick Answer
Toggle switches set each input to 0 or 1 and an LED shows the gate output, so students can fill in and check truth tables quickly. A built-in regulated 5 V DC supply powers the circuit, and the outputs are short-circuit protected. Gate symbols and truth tables are marked on the panel. Connections are by banana patch cords or fixed terminals and the base is plastic or metal, depending on model, so please confirm the wiring style at quotation.
Key Specifications
| Parameter | Detail |
|---|---|
| Gates | AND, OR, NOT, NAND, NOR, XOR |
| Supply | 5 V DC, built-in regulated |
| Inputs | Toggle switches (logic 0/1) |
| Outputs | LED indicators |
| Protection | Short-circuit |
| Wiring | Banana patch cords or fixed terminals |
| Base | Plastic or metal (by model) |
Where This Is Used
Used in school and first-year college electronics practicals to introduce Boolean algebra and truth tables; students then move to the Digital IC Trainer (Product ID: 14507) for multi-gate circuits. Browse the full Electronics Engineering Lab Equipment range or related Electronics Lab Equipment products.
Frequently Asked Questions
Which gates are included?
AND, OR, NOT, NAND, NOR and XOR.
How are the outputs shown?
By LED indicators.
Does it need an external supply?
No, it has a built-in regulated 5 V DC supply.
Related Categories
Electronics Engineering Lab Equipment · Electronics Lab Equipment · Physics Lab Equipment
Request a Quote
For pricing, bulk quantities or tender documentation on the 6 in 1 Logic Gate Apparatus, reach our team via Contact Us or submit your requirement through our Tenders page.
