16 Channel Multiplexer Board Manufacturer,Supplier and Exporter in India
.png)
Product Code : SCL-CE-12593

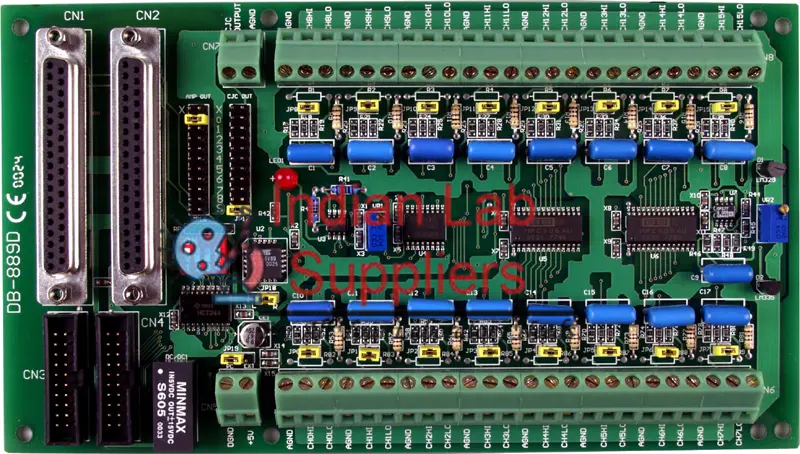

Indian Lab Suppliers supplies the 16 Channel Multiplexer Board (Product ID: 12593), part of the Communication Equipment range under Laboratory equipment, an expansion multiplexer/amplifier board that multiplexes 16 differential analog inputs into one analog input channel of a compatible data acquisition board.
Quick Answer
This board is an expansion multiplexer/amplifier for use with 82X, 1800-series and 818-family data acquisition boards, multiplexing 16 differential analog input channels into a single DAS input channel, with software-programmable instrumentation-amplifier gains and built-in cold-junction sensing/compensation for direct thermocouple measurement, and can be cascaded up to 128 voltage channels or 112 thermocouple channels.
Key Features
Expansion multiplexer/amplifier board for 82X, 1800-series and 818-family DAS boards · multiplexes 16 differential analog input channels into one DAS analog input · software-programmable instrumentation-amplifier gains of 0.5, 1, 5, 10, 50, 100, 500 and 1000 · built-in cold-junction sensing and compensation circuitry for direct thermocouple measurement · biasing resistors included for open-thermocouple detection · cascadable to a total of 128 voltage-measurement channels or 112 thermocouple-measurement channels.
Key Specifications
| Parameter | Detail |
|---|---|
| Analog input channels | 16 differential, multiplexed to one DAS input |
| Programmable gains | 0.5, 1, 5, 10, 50, 100, 500, 1000 |
| Thermocouple types accepted | J, K, T, E, S, R, B |
| Cold-junction compensation | 24.4 mV/°C (1°C/bit), 0.0V at 0.0°C |
| Potentiometers | 2 nos. |
| Overvoltage protection | ±30V continuous |
| Common-mode voltage | ±10V max. |
| Analog output voltage | ±10V |
| Cascading capacity | Up to 128 voltage-measurement channels or 112 thermocouple-measurement channels |
| Dimensions | 204 mm x 114 mm |
Scope of Supply
16 Channel Multiplexer Board unit · user's manual.
Where This Is Used
This board is used in electronics and instrumentation engineering education and laboratory data-acquisition setups for hands-on study of analog-channel expansion and thermocouple measurement with a compatible DAS board, complementing our broader Electronics Lab Equipment and Engineering Lab Equipment ranges.
Why Buy from Indian Lab Suppliers
Indian Lab Suppliers is an India-based laboratory equipment manufacturer and exporter supplying this 16 Channel Multiplexer Board alongside its broader Communication Equipment catalog, with documentation such as a Certificate of Origin available on request for institutional and export orders.
Frequently Asked Questions
How many channels can this board expand a DAS board to?
Each board multiplexes 16 differential inputs into one DAS input channel, and boards can be cascaded to a total of 128 voltage-measurement channels or 112 thermocouple-measurement channels.
Can this board be used directly with thermocouples?
Yes. It accepts J, K, T, E, S, R and B type thermocouples and includes cold-junction sensing/compensation circuitry (24.4 mV/°C) plus biasing resistors for open-thermocouple detection.
Do you supply this equipment for institutional or export orders outside India?
Yes. Indian Lab Suppliers quotes equipment for institutional and tender buyers across export markets — see the Tenders page for documentation requirements.
Related Categories
Laboratory · Electronics Lab Equipment · Engineering Lab Equipment
Request a Quote
For pricing, bulk quantities or tender documentation on the 16 Channel Multiplexer Board, reach our team via Contact Us or submit your requirement through our Tenders page.
