Solar Energy Panel System Trainer Manufacturer,Supplier and Exporter in India

Product Code : SCL-WT-13990

Indian Lab Suppliers supplies the Solar Energy Panel System Trainer (Product ID: 13990), listed under the Water Treatment subcategory of Water and Sanitation equipment on this site — though this is a solar photovoltaic education trainer, not water treatment equipment. We note this mis-categorization honestly rather than forcing an inaccurate water-treatment framing.

Note on naming: this is a more advanced, dual-panel system than our Solar Energy Trainer (Product ID: 13989) — this unit adds a controlled sun simulator (halogen lamps with dimmer), a PT100 temperature sensor with cooling fan, and a LUX meter for studying environmental effects on PV output, on top of the shared MPPT charging and battery/inverter functions.

Quick Answer

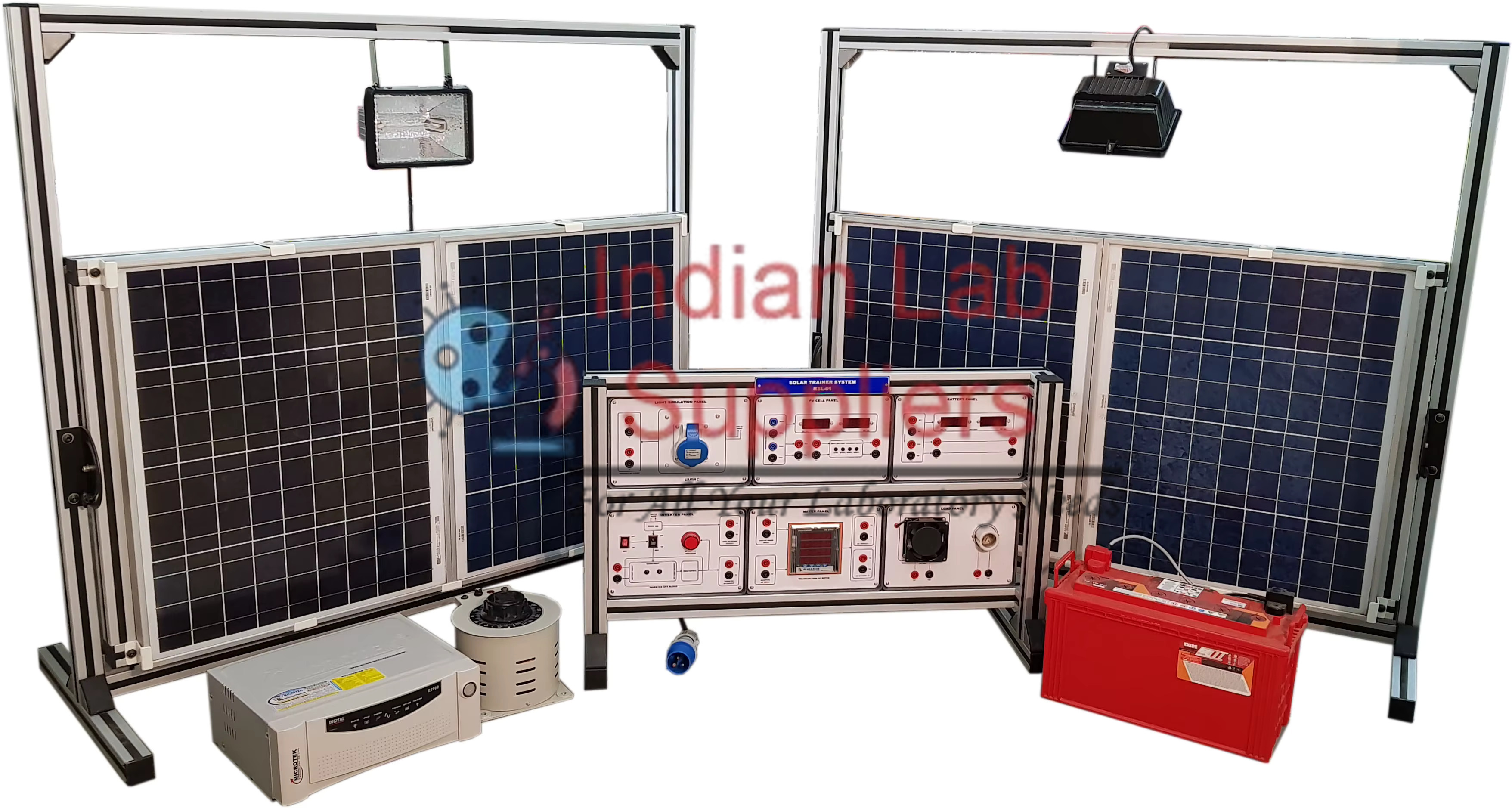

This Solar Energy Panel System Trainer is a dual-panel unit combining a tiltable PV mounting rack with a controllable halogen sun simulator, an MPPT-charged battery bank, and a 500VA inverter, letting students study I-V characteristics, MPPT, and the effects of light intensity, temperature, and shading on solar panel performance.

Key Specifications

Parameter	Detail
Product ID	13990
PV module mounting	40x40mm aluminum profile rack, tiltable and lockable, adjustable in 0–90° steps
PV modules	Supplied as 100W, 200W, or 500W capacity
Sun simulator	500W halogen lamps providing variable light intensity
Environmental sensing	PT100 temperature sensor with a cooling fan; LUX meter for light intensity; temperature meter panel on Panel-2
Panel-2 structure	40x40mm aluminum profile rack with nine ABS plastic panels featuring a mimic diagram
MPPT charge controller	Rated 12V, 40A; PV voltage range 10–15V
Battery	Lead-acid, 12V, 100Ah
Solar inverter	500VA, 10–15V DC input, 230V AC output
Application load panel	1 x 10W LED bulb and a 230V AC fan, each with on/off toggle control
Sun simulator control	1-pole MCB with a 1-phase, 0–270V AC / 3A variable transformer (dimmer)
DC meter panel	0–50V DC voltmeter and 0–2A DC ammeter
AC meter panel	0–300V AC voltmeter and 0–5A AC ammeter
Multifunction meter	Single-phase bidirectional meter measuring voltage, current, frequency, power factor, kVA, kW, and kWh

Where This Unit Is Used

The Solar Energy Panel System Trainer is used in electrical and renewable-energy engineering laboratories to teach photovoltaic system design, environmental performance testing, and MPPT charge control — it is an energy-education trainer rather than water treatment equipment, and is grouped here only because of how this listing is categorized in our catalog.

Why Buy from Indian Lab Suppliers

Indian Lab Suppliers is an India-based equipment manufacturer and exporter supplying the Solar Energy Panel System Trainer alongside its broader lab equipment catalog, with documentation such as a Certificate of Origin available on request for institutional and export orders.

Frequently Asked Questions

What experiments can be performed on this trainer?
Studying I-V characteristics of a solar cell, series and parallel array configurations, the dependency of I-V characteristics on light intensity (via the dimmer and LUX meter) and temperature (via the PT100 sensor and fan), shading effects, finding the maximum power point by varying resistive load, and battery charging/discharging efficiency.

How is the sun simulated for controlled testing?
500W halogen lamps provide variable light intensity, controlled through a 0–270V AC variable transformer (dimmer) with a dedicated MCB, letting students test panels under repeatable, adjustable lighting rather than relying on outdoor sunlight.

How is temperature effect on PV output studied?
A PT100 sensor measures panel temperature (displayed on the Panel-2 temperature meter) while a cooling fan allows students to vary and control panel temperature during testing.

What loads can be connected for demonstration?
A 10W LED bulb and a 230V AC fan are provided on the application load panel, each independently switched, to demonstrate real AC loads powered from the 500VA solar inverter.

Do you supply this equipment for institutional or export orders outside India?
Yes. Indian Lab Suppliers quotes equipment for institutional and tender buyers across export markets — see the Tenders page for documentation requirements.
