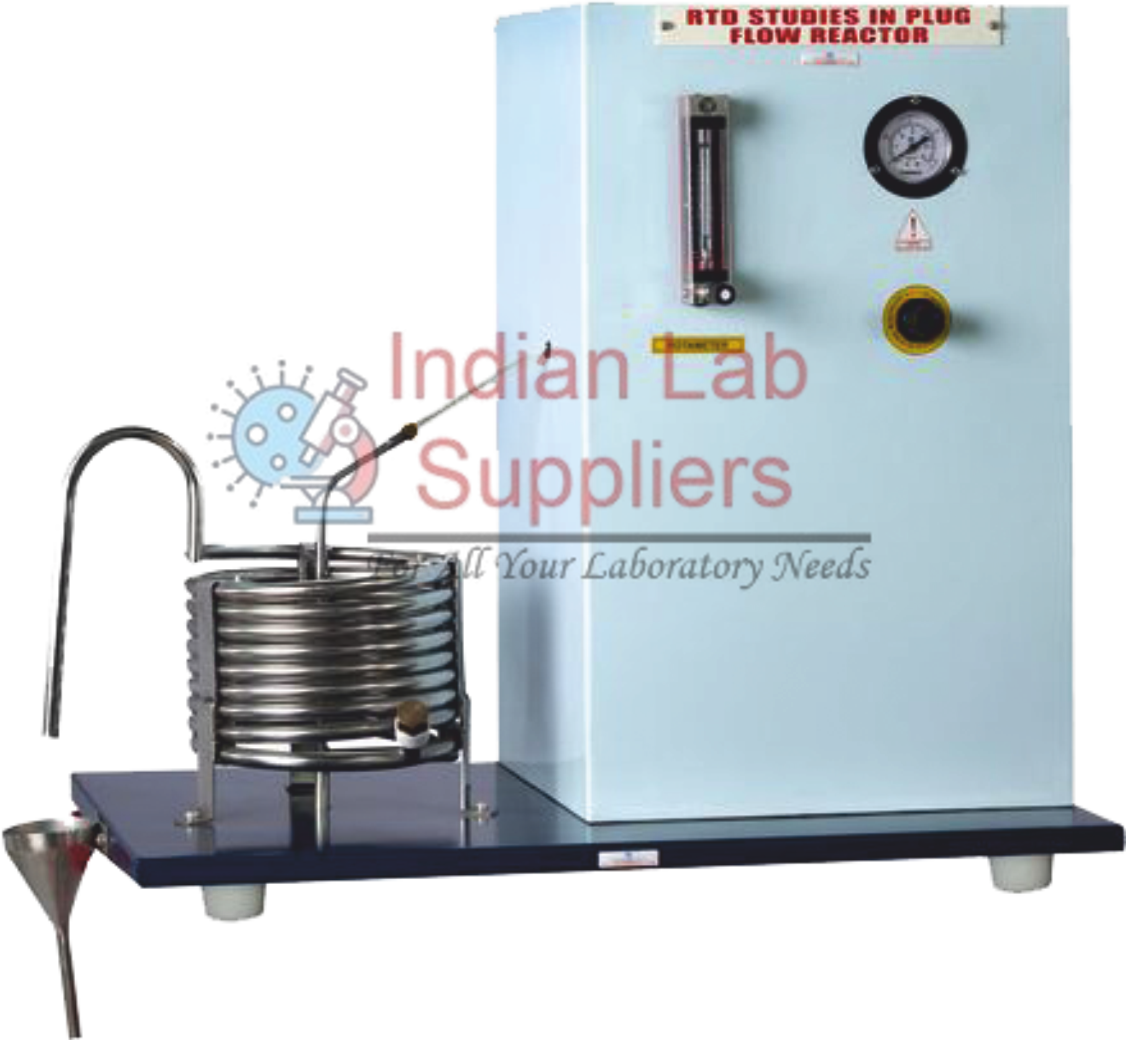

R.T.D Studies In Plug Flow Tubular Reactor (Coiled Tube Type) Manufacturer,Supplier and Exporter in India
 (1).png)
Product Code : SCL-CLE-13395
Indian Lab Suppliers supplies the R.T.D Studies In Plug Flow Tubular Reactor (Coiled Tube Type) (Product ID: 13395) as part of its chemistry lab equipment range. It is a set-up for measuring the residence time distribution (RTD) of a coiled tube plug flow reactor.
Quick Answer
Real reactors depart from ideal plug flow because of channelling, recycling and stagnant zones. A tracer is injected at the inlet of the 0.7 litre (approx.) stainless steel helical coil and its concentration is followed at the outlet to build the RTD curve. Water is fed from a 20 litre stainless steel tank by compressed air and metered with a rotameter. Please confirm the tracer detection method at quotation. Wear gloves and eye protection when handling tracer solutions.
Key Specifications
| Parameter | Detail |
|---|---|
| Reactor | Stainless steel helical coil, approx. 0.7 L |
| Feed tank | Stainless steel, 20 L |
| Feed / flow | Compressed air; rotameter |
| Pressure | Regulator and Bourdon gauge, 0–2 kg/cm² |
| Piping / frame | Stainless steel and PVC; powder-coated structure |
| Timing | Electronic stopwatch |
Where This Is Used
Used with the R.T.D Studies Continuous Stirred Tank Reactor (Cascade C.S.T.R) (Product ID: 13391) to compare RTD curves for mixed and plug flow. Browse the full Chemistry Lab Equipment (general) range or related Chemistry Lab Equipment products.
Frequently Asked Questions
What does the experiment measure?
The spread of times fluid spends in the reactor.
What is the coil volume?
About 0.7 litre.
How is flow set?
With a rotameter on the feed line.
Related Categories
Chemistry Lab Equipment (general) · Chemistry Lab Equipment · Engineering Lab Equipment
Request a Quote
For pricing, bulk quantities or tender documentation on the R.T.D Studies In Plug Flow Tubular Reactor (Coiled Tube Type), reach our team via Contact Us or submit your requirement through our Tenders page.
