Portable Wheatstone Bridge Apparatus Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-EELE-14511

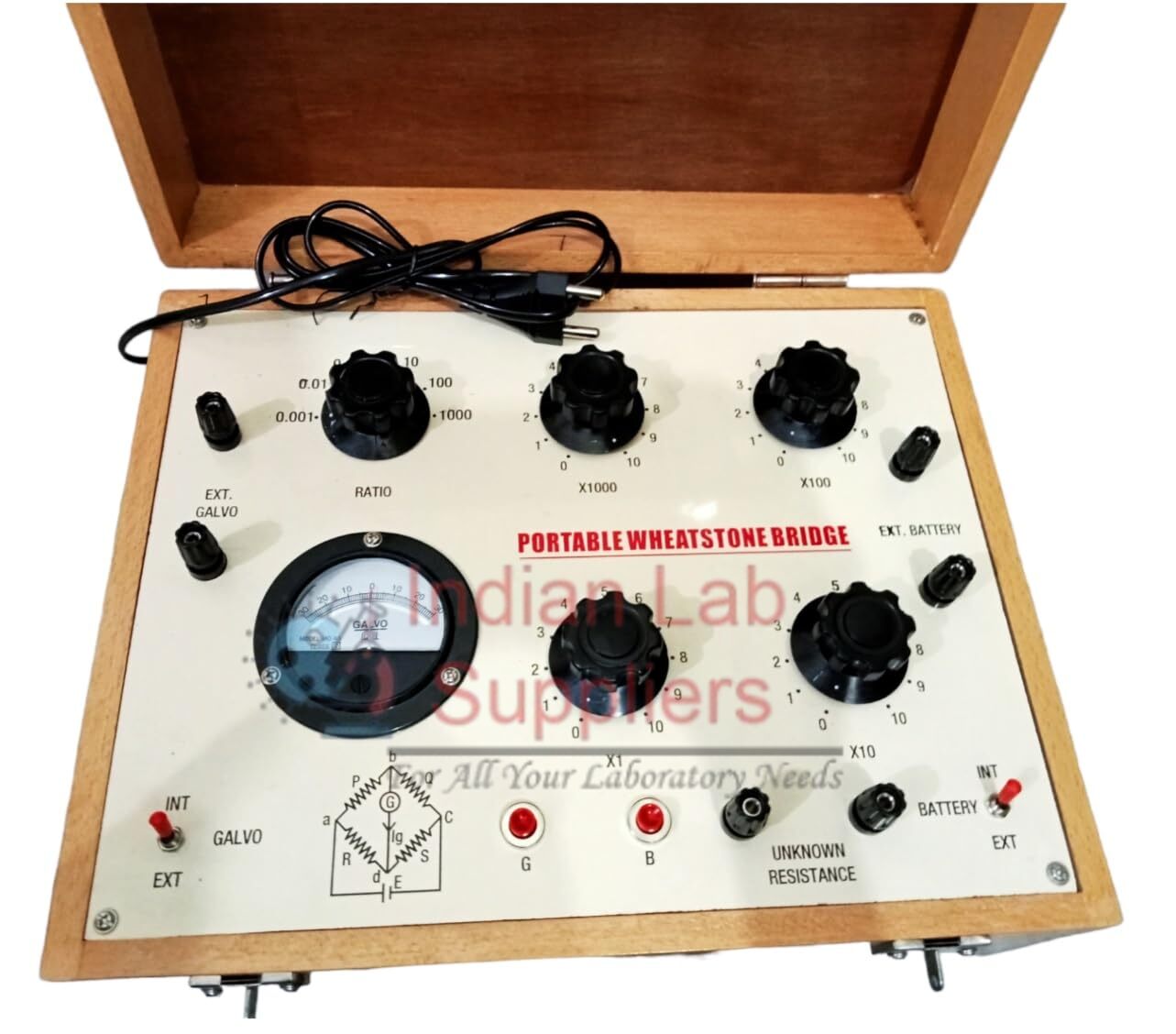

Indian Lab Suppliers supplies the Portable Wheatstone Bridge Apparatus (Product ID: 14511) as part of its electronics engineering lab equipment range. It is a portable four-arm Wheatstone bridge for measuring an unknown resistance by the null (balance) method.
Quick Answer
The unknown resistor is connected across colour-coded insulated binding posts, and the bridge, built from wire-wound resistors, is balanced with dial knobs on a graduated scale until the galvanometer reads zero. At balance P/Q = R/X, so the unknown X = R × Q/P. The galvanometer is moving-coil or moving-magnet depending on model, and the bridge runs from a standard DC supply or dry cells. The range is given only as a few ohms to several kilo-ohms, so please confirm the range, galvanometer type and housing (ABS or metal) at quotation.
Key Specifications
| Parameter | Detail |
|---|---|
| Bridge type | Four-arm Wheatstone bridge |
| Resistors | Wire-wound |
| Range | A few ohms to several kilo-ohms (confirm at quotation) |
| Galvanometer | Moving-coil or moving-magnet (by model) |
| Balancing | Dial knobs with graduated scale |
| Terminals | Colour-coded insulated binding posts |
| Supply | Standard DC supply or dry cells |
| Housing | ABS or metal, portable |
Where This Is Used
Used in physics, electrical measurement and electronics labs for resistance measurement by the null method and for teaching balanced bridge networks. A similar instrument with ratio arms and decade resistors is the Portable Wheatstone Bridge (Product ID: 14512). Browse the full Electronics Engineering Lab Equipment range or related Electricity and Magnetism products.
Frequently Asked Questions
How is balance detected?
The galvanometer reads zero when the bridge is balanced.
What powers the bridge?
A standard DC supply or dry cells.
What resistance range does it cover?
A few ohms to several kilo-ohms; please confirm the exact range at quotation.
Related Categories
Electronics Engineering Lab Equipment · Electricity and Magnetism · Physics Lab Equipment
Request a Quote
For pricing, bulk quantities or tender documentation on the Portable Wheatstone Bridge Apparatus, reach our team via Contact Us or submit your requirement through our Tenders page.
