Parallelogram Law Apparatus | Gravesande Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-FAM-14594
Indian Lab Suppliers supplies the Parallelogram Law Apparatus | Gravesande (Product ID: 14594) as part of its forces and motion range. It verifies the parallelogram law of forces with two pulleys, hanging weights and a vertical drawing board.
Quick Answer

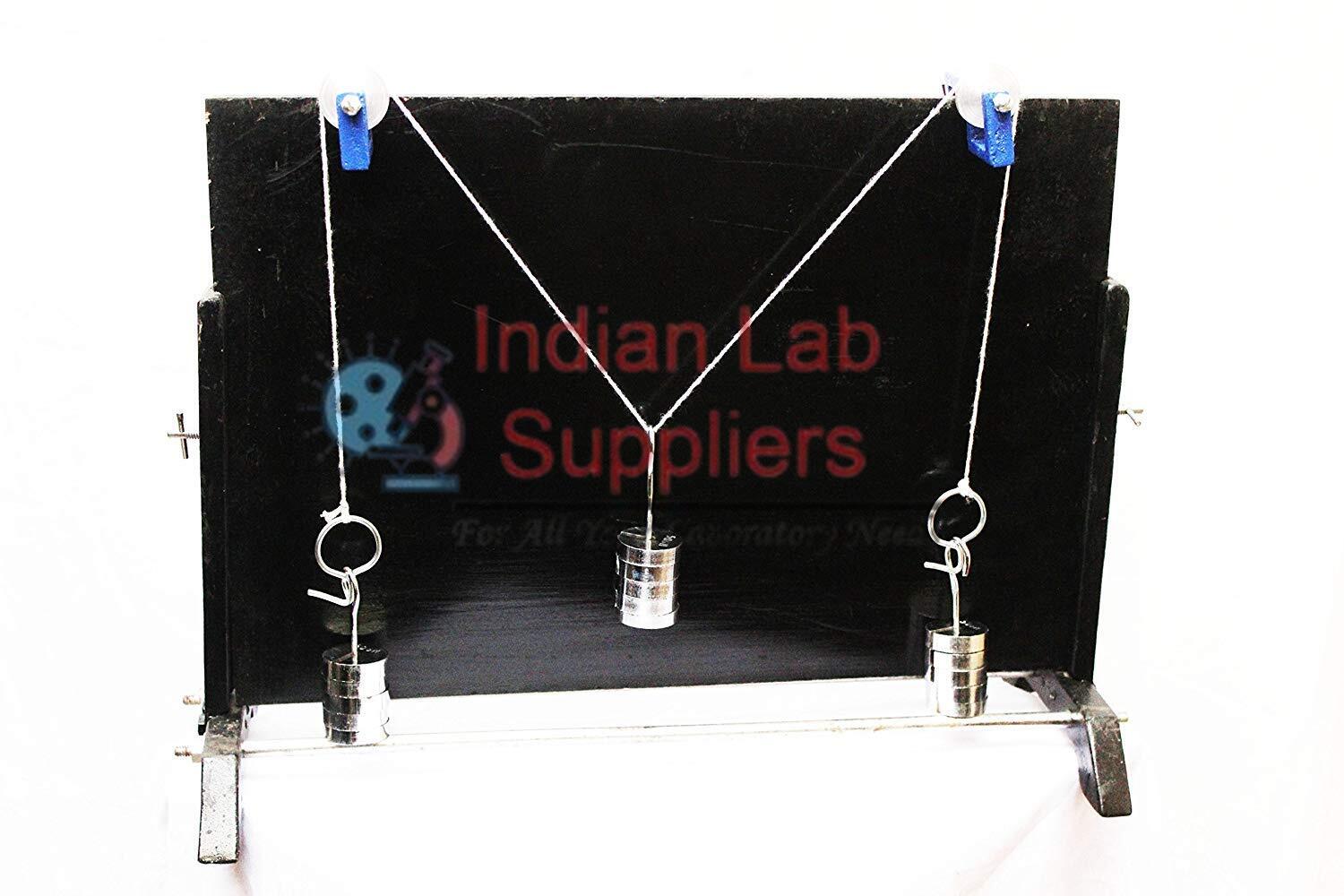

Two pulleys at the top of a vertical board carry cords with weight hangers, and a third load hangs from the knot joining the cords. When the knot comes to rest, the two cord tensions, drawn to scale along the cords as adjacent sides of a parallelogram, give a diagonal equal and opposite to the third weight. The board is about 450 × 600 mm, in graph or plain finish, on a wooden or powder-coated metal base. Pulleys are aluminium or brass with ball bearings, and the cords are smooth nylon.
Key Specifications
| Parameter | Detail |
|---|---|
| Board size | About 450 × 600 mm, graph or plain |
| Base | Wood or powder-coated metal |
| Pulleys | 2, aluminium or brass, ball-bearing |
| Weights | Slotted, 50 g × 8 or 20 g × 10 (by version) |
| Cord | Smooth nylon |
| Included | 2 pulleys, 2 weight hangers, slotted weight set, cords |
Where This Is Used
Used for vector addition and resolution of forces in school, college and polytechnic labs; the horizontal equivalent is the Force Table (Product ID: 11686). Please confirm the weight set and board finish at quotation. Browse the full Forces and Motion range or related Applied Mechanics products.
Frequently Asked Questions
What law does it verify?
The parallelogram law of forces.
What size is the board?
About 450 × 600 mm.
Which weights come with it?
Slotted masses, 50 g × 8 or 20 g × 10 depending on version.
Related Categories
Forces and Motion · Applied Mechanics · Physics Lab Equipment
Request a Quote
For pricing, bulk quantities or tender documentation on the Parallelogram Law Apparatus | Gravesande, reach our team via Contact Us or submit your requirement through our Tenders page.
