LED TV Trainer Manufacturer,Supplier and Exporter in India

Product Code : SCL-CE-12647

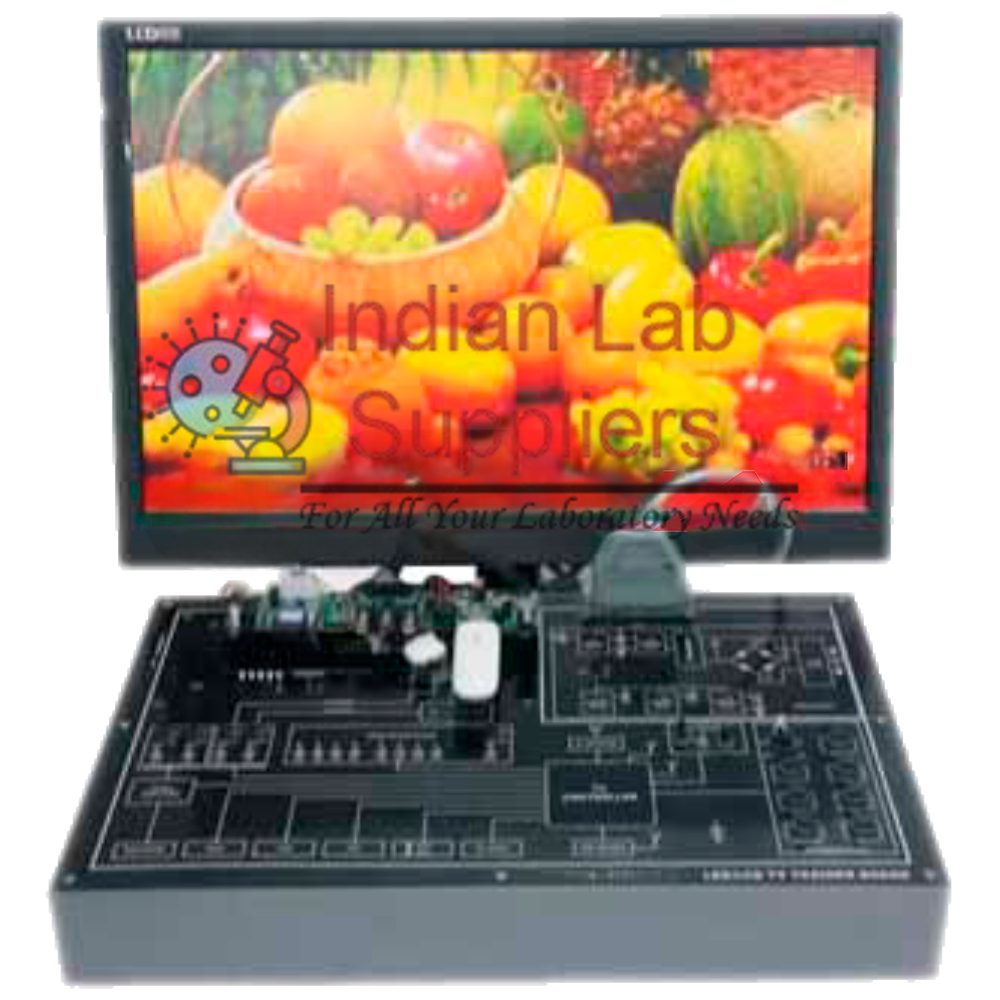

Indian Lab Suppliers supplies the LED TV Trainer (Product ID: 12647), part of the Communication Equipment range under Laboratory equipment, a functioning 22-inch LCD/LED colour TV receiver built onto a single PCB with test points and fault switches so that trainees can study receiver operation and practise fault-finding.

Note on naming and scope: this listing shares the exact name "LED TV Trainer" with our earlier LED TV Trainer (Product ID 12601), which is a compact mimic-panel demonstrator (9 kg, 400 x 300 x 115 mm) built around a 24-inch full-HD LED television with a block-diagram mimic panel and 60 test points. This product (12647) is a different unit: a complete 22-inch LCD/LED colour TV receiver circuit printed directly on one PCB, with an analogue RF/PAL tuner (channels 2 to 69), 8 dedicated fault switches, and a metal enclosure — there is no mimic block-diagram panel. It also uses the same specification template as our LED/LCD TV Trainer (Product ID 12648), which is identical except for a 32-inch display. Please confirm the exact model and specification with our team before ordering.

Quick Answer

This is a 22-inch LCD/LED colour TV trainer that puts a complete, working television receiver circuit on a single PCB so students can trace signal flow at labelled test points, and use built-in fault switches to introduce and rectify common receiver breakdowns under instructor or self-guided practice.

Key Features

Complete LCD/LED colour TV receiver circuit printed on a single PCB for easy identification of functional blocks · Test points provided throughout to analyse and monitor signals at different stages · 8 built-in fault switches for introducing common breakdowns and practising rectification · Analogue RF/PAL tuner covering channels 2 to 69, plus RGB VGA, S-Video and composite video inputs · On-screen display and remote control for volume, brightness, contrast, colour, channel and tuning · Built-in audio amplifier and stereo RCA audio inputs · All interconnections via 2mm sockets; ICs mounted on IC sockets · Bare-board-tested Glass Epoxy SMOBC PCB printed with the block diagram · Attractive metal enclosure with user manual for experiments

Key Specifications

Scope of Supply

The LED TV Trainer · user manual for experiments

Where This Is Used

This trainer is used in electronics and communication engineering labs to teach LCD/LED television receiver operation and fault diagnosis; see also our Electronics Lab Equipment and Engineering Lab Equipment ranges.

Why Buy from Indian Lab Suppliers

Indian Lab Suppliers is an India-based laboratory equipment manufacturer and exporter supplying this LED TV Trainer alongside its broader Communication Equipment catalog, with documentation such as a Certificate of Origin available on request for institutional and export orders.

Frequently Asked Questions

What does the LED TV Trainer (Product ID 12647) actually consist of?
It is a complete 22-inch LCD/LED colour TV receiver circuit printed on a single PCB, with test points, 8 fault switches, an RF/PAL tuner and a metal enclosure, so students can study the receiver and practise fault-finding.

Is this the same as your other LED TV Trainer listings?
No. It shares its name with Product ID 12601 but is a different, functioning 22-inch receiver design rather than a mimic-panel demonstrator — please confirm the exact model with our team before ordering.

What video and audio inputs does it support?
It supports RGB VGA (HD-15), S-Video and composite video inputs, stereo RCA audio inputs, and an RF/PAL antenna input tuning channels 2 to 69.
