Induction Coil Apparatus Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-FAM-14595

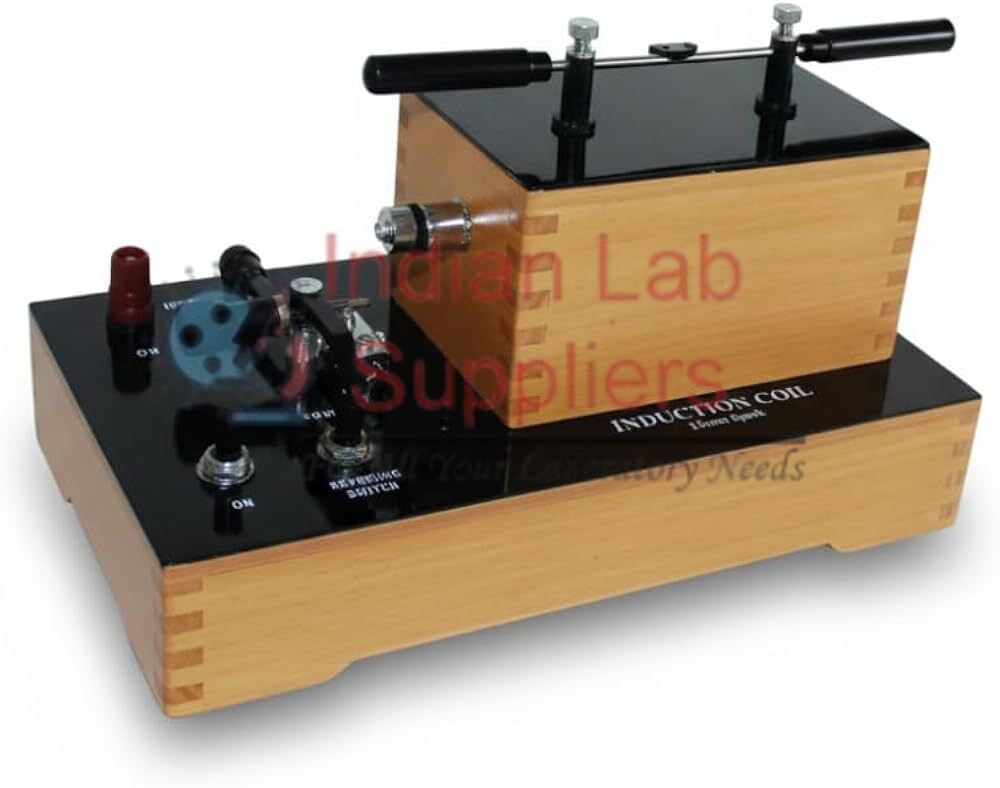

Indian Lab Suppliers supplies the Induction Coil Apparatus (Product ID: 14595) as part of its forces and motion range. It is a primary and secondary coil on an iron core that shows how a changing magnetic flux induces an EMF.
Quick Answer
The primary has typically 300–500 turns and the secondary 6,000–15,000 turns on a laminated or solid soft-iron core that can be slid to change the flux linkage. With a 6–12 V DC input, an EMF is induced only while the primary current or the core position is changing, for example at switch-on and switch-off; the large turns ratio then gives high-voltage pulses at the secondary. It shows Faraday's law, self-induction and mutual induction. Do not touch the secondary terminals while it is powered. Please confirm the turns, core type and whether an interrupter or spark gap is included at quotation.
Key Specifications
| Parameter | Detail |
|---|---|
| Primary coil | About 300–500 turns (by version) |
| Secondary coil | About 6,000–15,000 turns |
| Core | Laminated or solid soft iron, sliding |
| Input | 6–12 V DC |
| Output | High-voltage pulses, demonstration level |
| Frame | Wood or powder-coated metal |
| Accessories | Soft iron core, connectors; spark gap optional |
Where This Is Used
Used in electromagnetism lessons with the Faraday’s Law Apparatus (Product ID: 14670). More apparatus is in Electricity and Magnetism. Browse the full Forces and Motion range or related Electricity and Magnetism products.
Frequently Asked Questions
What input does it need?
6 to 12 V DC.
When is an EMF induced?
Only while the magnetic flux through the secondary is changing.
Is a spark gap included?
It is optional; confirm at quotation.
Related Categories
Forces and Motion · Electricity and Magnetism · Magnetism
Request a Quote
For pricing, bulk quantities or tender documentation on the Induction Coil Apparatus, reach our team via Contact Us or submit your requirement through our Tenders page.
