Energy Band Gap Apparatus Manufacturer,Supplier and Exporter in India
.png)
Product Code : SCL-WAE-14577

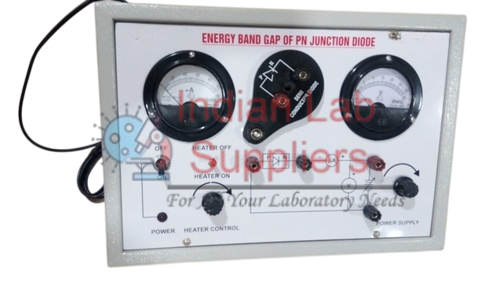

Indian Lab Suppliers supplies the Energy Band Gap Apparatus (Product ID: 14577) as part of its work and energy range. A bench apparatus for finding the energy band gap of a germanium or silicon diode from how its reverse saturation current changes with temperature.
Quick Answer
The diode is reverse-biased from the built-in regulated DC supply and heated in a temperature-controlled arrangement, while digital meters read the reverse current and voltage and a temperature sensor gives the diode temperature. Because the reverse saturation current rises steeply with temperature, roughly as exp(−Eg/kT), a graph of log Is against 1/T is a straight line whose slope gives the band gap Eg. The unit comes fully assembled with a diode mount and leads. Diode type (germanium or silicon), meter ranges, supply range, heating method and sensor type vary by model, so please confirm them at quotation.
Key Specifications
| Parameter | Detail |
|---|---|
| Diode | Germanium or silicon (by model) |
| Reverse current | Up to about 200 µA |
| Temperature | Room temperature to about 100 °C |
| DC supply | Built-in, regulated; 0–5 V or 0–12 V by model |
| Voltmeter | Digital, 0–2 V or 0–5 V |
| Micro-ammeter | Digital, 0–200 µA or 0–2 mA |
| Temperature sensor | PT100 or thermistor |
| Body | Powder-coated metal |
| Accessories | Diode mount, heating arrangement, leads |
Where This Is Used
Used in engineering college and university physics labs for semiconductor practicals, alongside the PN Junction Diode Apparatus – 2 Meter (Product ID: 14596) and the Digital Zener Diode Apparatus (Product ID: 14659). The heating chamber gets hot, so let it cool before changing the diode. Browse the full Work and Energy range or related Electrical and Electronics products.
Frequently Asked Questions
What does it measure?
The energy band gap of a semiconductor diode.
How is the band gap found?
From the slope of log reverse saturation current against 1/T.
Which diodes are used?
Germanium or silicon, depending on the model.
Related Categories
Work and Energy · Electrical and Electronics · Electronics Lab Equipment
Request a Quote
For pricing, bulk quantities or tender documentation on the Energy Band Gap Apparatus, reach our team via Contact Us or submit your requirement through our Tenders page.
