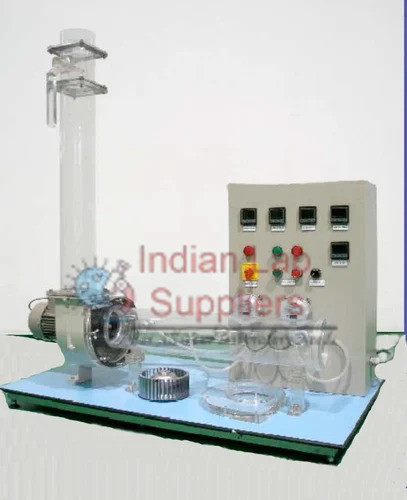

Centrifugal Compressor Demo Unit Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-CELE-14200
The Radial Compressor Demonstration
Apparatus is designed for the study of gas compression principles and
performance characteristics of centrifugal compressors.
It allows students and researchers to experimentally investigate the operating
behavior, flow parameters, and performance curves of a two-stage radial
compressor system under controlled conditions.
Radial (centrifugal) compressors are widely
used to compress gases in industrial and process applications. The gas enters axially
into the impeller and is accelerated radially outward due to centrifugal
force, leading to an increase in pressure and kinetic energy.
This apparatus provides a clear visualization and measurement of these
phenomena through transparent intake and delivery pipes, a variable-speed
drive, and software-based data acquisition.
Key
Features
- Illustrative two-stage radial compressor with transparent intake and delivery sections.
- Variable-speed drive via
frequency converter for detailed performance studies.
- Throttle valve at
the delivery pipe outlet for controlled airflow adjustment.
- Protective inlet guard
ensuring undisturbed airflow and preventing obstruction.
- Measurement of key compressor parameters, including flow rate, differential pressure, temperature, speed,
power, and efficiency.
- Microprocessor-based measuring system with integrated data processing.
- Software for data acquisition, visualization, and operation via USB connection.
- Comprehensive instructional material including theoretical background and experiment procedures.
Technical
Specifications
|
Component |
Specification |
|
Type |
Two-stage radial (centrifugal) compressor |
|
Power Consumption |
1000 W |
|
Speed Range |
1000 – 16,000 min?¹ (display up to 21,000 min?¹) |
|
Maximum Flow Rate |
180 m³/h |
|
Maximum Pressure Head |
235 mbar |
|
Intake Pipe |
Inner diameter: 44 mm • Length: 84 mm |
|
Delivery Pipe |
Inner diameter: 34 mm • Length: 200 mm |
|
Flow Adjustment |
Throttle valve on delivery pipe |
|
Air Inlet Protection |
Protective plate to ensure uniform inflow |
|
Flow Rate Measurement |
Differential pressure across intake nozzle |
|
Measuring Parameters |
Differential pressure (stage 1 & 2), flow rate, speed, electrical
power, hydraulic power, temperature, efficiency |
|
Differential Pressure Ranges |
0 – 350 mbar (stage 1 / stage 2) |
|
Flow Rate Range |
0 – 120 m³/h |
|
Temperature Range |
0 – 100°C (2 channels) |
|
Power Measurement |
0 – 1000 W |
|
Control and Interface |
Microprocessor-based instrumentation with USB connection |
|
Software Compatibility |
Windows Vista or Windows 7 |
Experiments
& Applications
- Study of operating behavior and performance characteristics
of a radial compressor.
- Recording compressor performance curves for both stages.
- Investigation of the effect of rotor speed on pressure and
flow rate.
- Determination of the distribution of stage pressure ratios.
- Analysis of temperature rise due to compression.
- Determination of hydraulic power output and overall efficiency.
Educational
Objectives
- Understand the working principle of radial (centrifugal)
compressors.
- Record and interpret compressor characteristic curves.
- Evaluate the relationship between speed, flow rate, and pressure
rise.
- Measure thermal and mechanical efficiency under varying
operating conditions.
- Compare theoretical predictions with experimentally obtained
performance data.
Services
Required
- Electrical Supply:
240/440 V, 3 Phase, 50 Hz.
