Biogas Pilot Plant Manufacturer,Supplier and Exporter in India
.png)
Product Code : SCL-WT-13967
Indian Lab Suppliers supplies the Biogas Pilot Plant (Product ID: 13967), part of the Water Treatment range under Water and Sanitation equipment, built around a temperature-controlled reaction vessel with membrane separation.
Quick Answer

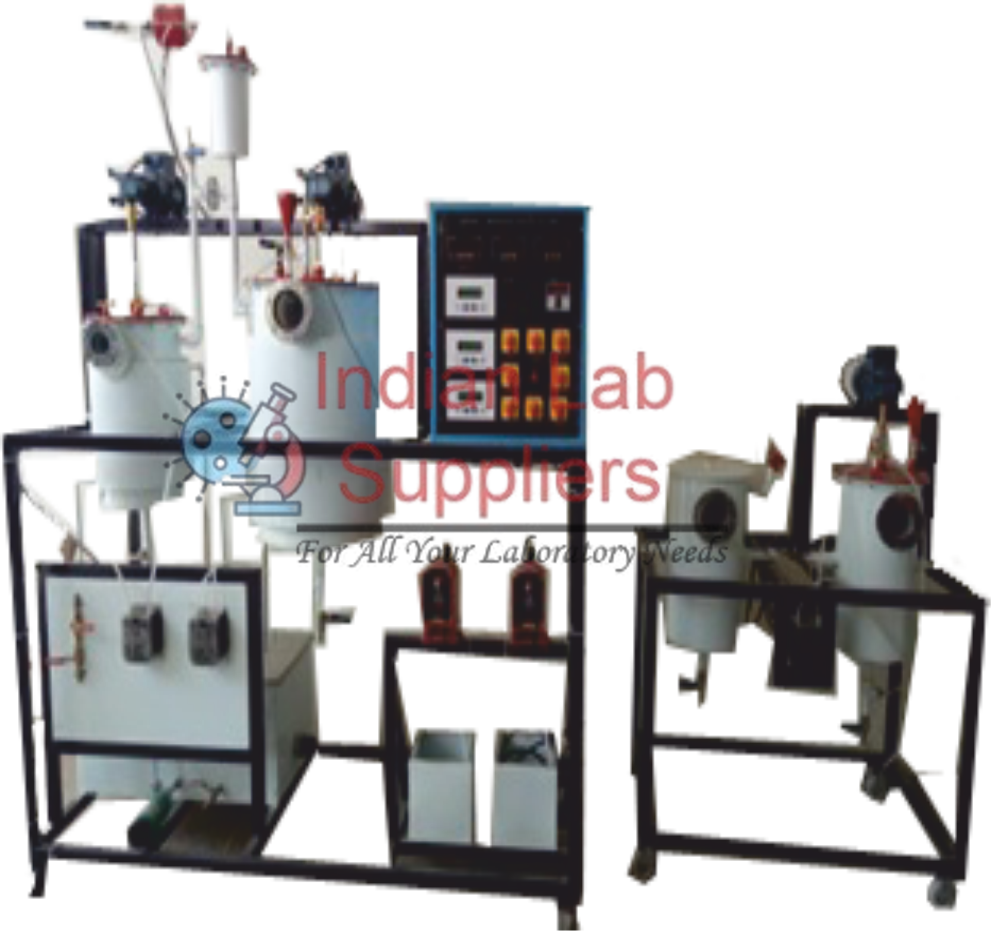

The Biogas Pilot Plant is a bench-scale digestion unit built around a 20-litre stainless steel reaction vessel with an internal tubular membrane for separation, a thermostatic-bath-fed heating/cooling coil for temperature control, and instrumentation for temperature, pH, and dissolved oxygen monitoring.
Key Specifications
| Parameter | Detail |
|---|---|
| Product ID | 13967 |
| Reaction vessel | 20 litres capacity, stainless steel, with an internal tubular membrane for filtration/separation |
| Filtration | Membrane-based sludge (muds) separation, with an overflow for filtered water outlet and a bottom valve for sludge extraction |
| Temperature control | Heating/cooling coil inside the reactor, fed by a thermostatic bath (up to 60°C, 6 litres, 600W) via a hot water circulation pump |
| Aeration system | Air compressor (0–5 L/min), air flow meter (0.4–5 L/min), and a diffusion plate for air inlet (see note below) |
| Monitoring | Meter for temperature, pH, and dissolved oxygen (DO) |
| Pumping | Peristaltic pump (0–0.05 L/min) with a water flow meter (0.004–0.05 L/min), for precise liquid handling |
| Control panel | Switches for the hot water circulation pump, peristaltic pump, air compressor, and main power, with a front-panel process diagram |
Note on process type: the specification includes an aeration system for aerobic processes, while biogas generation is normally an anaerobic process. Please confirm with our team whether this unit is configured for aerobic or anaerobic operation before ordering. It shares its core reactor design (20L SS vessel, tubular membrane, thermostatic bath, aeration and monitoring instrumentation) with our Aerobic Digestor (Product ID 13966); please confirm which one matches your process requirement.
Where This Unit Is Used
The Biogas Pilot Plant is used in environmental and chemical engineering laboratories to teach digestion and biogas process fundamentals, forming part of a broader range of water treatment equipment such as the Aerobic Digestor.
Frequently Asked Questions
Is this unit aerobic or anaerobic?
The manufacturer's own specification contains an unresolved internal conflict on this point — it documents an aerobic aeration system while also referencing "anaerobic" operation elsewhere. Please confirm the intended process configuration with our team before ordering.
What is the reactor capacity and construction?
A 20-litre stainless steel reaction vessel with an internal tubular membrane for filtration and separation, an overflow for filtered water, and a bottom valve for sludge extraction.
How is temperature controlled?
Via a heating/cooling coil inside the reactor supplied by a thermostatic bath (up to 60°C, 6 litres, 600W) and a hot water circulation pump.
Is this the same as the Aerobic Digestor listed elsewhere?
This listing shares the same core reactor design (20L stainless steel vessel, tubular membrane, thermostatic bath) as the separately listed Aerobic Digestor (Product ID 13966); buyers should confirm which listing and configuration matches their requirement.
Related Categories
Sanitation & Hygiene · Water and Sanitation · Water Testing · Pump Riser Pipe · Water Distribution-Fittings
Request a Quote
For pricing, bulk quantities or tender documentation on the Biogas Pilot Plant, reach our team via Contact Us or submit your requirement through our Tenders page.
