Product Code : SCL-CE-12634

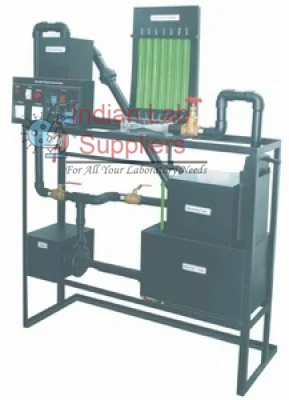

Bernoulli's Theorem Trainer (Product ID: 12634) is offered as part of the Communication Equipment range under our Laboratory equipment catalog; despite the category placement, the product itself is a fluid-mechanics demonstration unit that lets students verify Bernoulli's Theorem using a transparent acrylic venturi test section connected to a multi-tube manometer bank.
Quick Answer
The Bernoulli's Theorem Trainer is a bench-top fluid mechanics apparatus used to demonstrate that, in steady flow, the sum of kinetic, potential and pressure energy along a streamline remains constant. Water is fed through a clear acrylic venturi (convergent-divergent duct) from a pump and header tank, and static pressure at several points along the duct is read from a bank of manometer tubes, allowing students to study flow through the converging and diverging sections and to determine the coefficient of discharge.
Key Features
Classical venturi test section in clear acrylic for full visibility of flow · Multiple wall tappings for static pressure measurement along the convergent duct · Total head tube fitted at the throat · Seven-tube manometer bank (flexible, transparent tubing) for simultaneous pressure readings · Gate valve at the venturi outlet for flow rate control · Designed for use with a hydraulic bench, with its own pump, reservoir, overhead and measuring tanks · Body-mounted level indicator for tank level monitoring
Object of Study
Demonstrate flow rate measurement through a venturi · Determine the coefficient of discharge · Study the pressure and velocity relationship (Bernoulli's Theorem) through convergent and divergent sections
Key Specifications
| Test Section (Venturi) | |
|---|---|
| Throat Diameter | 12 mm |
| Upstream Diameter | 33 mm |
| Upstream Taper | 10° |
| Downstream Taper | 17° |
| Material of Construction | Acrylic (Transparent) |
| Manometer | |
| Range | 0 to 300 mm |
| Tubes | Seven tubes (flexible & transparent) |
| Tanks & Pump | |
| Reservoir Tank | Capacity 40 Litres (dimensions as supplied – see note below) |
| Overhead Tank | Capacity 16 Litres (dimensions as supplied – see note below) |
| Measuring Tank | Capacity 23 Litres (dimensions as supplied – see note below) |
| Pump | 72 LPM, 0.5 HP, 230 V, 50 Hz |
| Level Indicator | 20 cm (body mounted type) |
Note: the source specification sheet lists tank dimensions as strings of numbers without a clear "x" separator between length, width and height (e.g. the reservoir tank figure reads as "503 300 310" and the overhead tank figure as "191 195 450"), so the exact dimensions could not be reliably reconstructed here. Please confirm the precise tank dimensions with our team before ordering.
Scope of Supply
Acrylic venturi test section with pressure tappings and total head tube, seven-tube manometer bank, reservoir tank, overhead tank, measuring tank, pump, gate valve and level indicator as detailed above.
Where This Is Used
This trainer is used in fluid mechanics laboratories to teach flow measurement and energy-conservation principles, and is relevant to institutions equipping Electronics Lab Equipment and Engineering Lab Equipment facilities.
Why Buy from Indian Lab Suppliers
Indian Lab Suppliers is an India-based laboratory equipment manufacturer and exporter supplying this Bernoulli's Theorem Trainer alongside its broader Communication Equipment catalog, with documentation such as a Certificate of Origin available on request for institutional and export orders.
Frequently Asked Questions
What does the Bernoulli's Theorem Trainer demonstrate?
It demonstrates Bernoulli's Theorem by showing how pressure varies as fluid flows through the convergent and divergent sections of a venturi, and allows students to calculate the coefficient of discharge.
What is the test section made of?
The venturi test section is made of transparent acrylic, which allows the flow to be observed directly while pressure readings are taken from the wall tappings.
Does this unit need any additional equipment to operate?
Yes, per the manufacturer's specification the unit is designed to be used together with a hydraulic bench, which supplies and circulates the water through the venturi via the pump, reservoir and overhead tank supplied.
Related Categories
Laboratory · Electronics Lab Equipment · Engineering Lab Equipment
Request a Quote
For pricing, bulk quantities or tender documentation on the Bernoulli's Theorem Trainer, reach our team via Contact Us or submit your requirement through our Tenders page.
