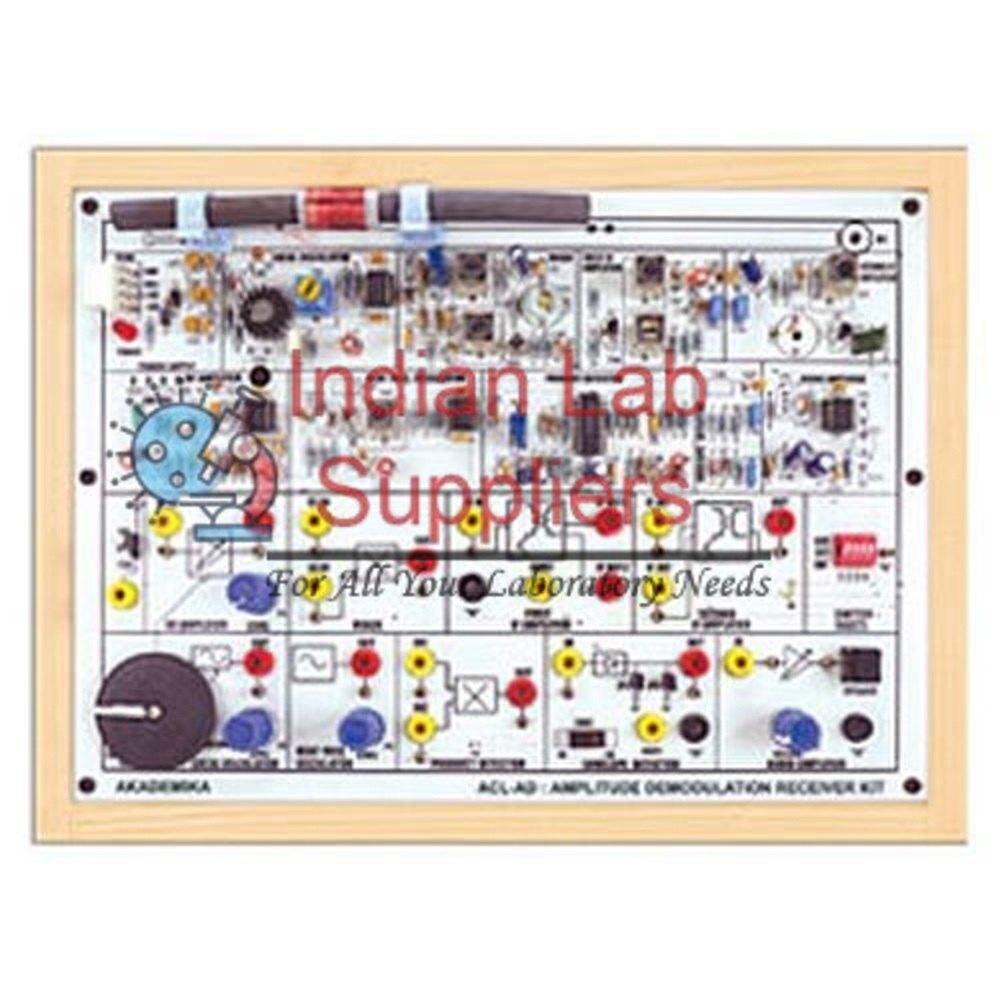

Indian Lab Suppliers supplies the Amplitude Demodulation Receiver Kit (Product ID: 12501), part of the Communication Equipment range under Laboratory equipment, a super-heterodyne AM receiver trainer for studying double sideband (DSB) and single sideband (SSB) reception — the companion receiver to our Amplitude Modulation Transmitter Kit (Product ID 12500).
Quick Answer
This kit lets students study DSB and SSB reception on a super-heterodyne AM receiver, using a diode envelope detector and a product detector, together with image-frequency study, receiver tuned-circuit adjustment and live voice reception, and 4 switch-selectable faults for fault-study exercises. It is designed as the matching receiver for our Amplitude Modulation Transmitter Kit (Product ID 12500).
Key Specifications
| Section | Detail |
|---|---|
| Super-heterodyne AM receiver | Frequency 400 kHz–1.5 MHz; intermediate frequency 455 kHz; output IF frequency 455 kHz adjustable; dual-tuned LC IF filter; RF amplifier with variable gain |
| Mixer (frequency converter) | Output frequency 455 kHz adjustable; band-pass filter with 455 kHz centre frequency |
| Local oscillator | Sine wave output; load impedance range 900 kHz–2.1 MHz; output amplitude adjustable 0–2 Vpp |
| 1st and 2nd IF amplifier | Central frequency 455 kHz; variable R-L-C load impedance; gain 40 dB with automatic gain control |
| Diode envelope detector | Detects the positive and negative envelope, with variable RC filter, for DSB |
| Product detector | Operating frequency adjustable 400–500 kHz, for SSB; input amplitude 1 Vpp |
| Audio output | Amplifier with speaker; audio amplifier gain 20 dB |
| Switch faults | 4 switch-selectable faults on board, for studying their effect on the circuit |
Experiments
Study of DSB and SSB reception using an envelope diode detector and a product detector · study of image frequencies · study of adjustment of receiver tuned circuits · voice reception using a DSB/SSB AM (super-heterodyne) receiver.
Where This Is Used
This Amplitude Demodulation Receiver Kit is used in electronics and communication engineering education to teach super-heterodyne AM reception, alongside our Amplitude Modulation Transmitter Kit, complementing our broader Electronics Lab Equipment and Engineering Lab Equipment ranges.
Frequently Asked Questions
Is this receiver designed to pair with a specific transmitter?
Yes, it is the matching receiver for our Amplitude Modulation Transmitter Kit (Product ID 12500), sharing the same DSB/SSB carrier and IF frequency ranges.
How is SSB reception detected differently from DSB reception?
DSB uses the diode envelope detector with a variable RC filter, while SSB uses the product detector operating over 400–500 kHz.
